Noyes OLS4 kit with accessories

AFL OLS4-EF SM MM Encircled Flux Compliant Fiber Optic Light Source

Sensors & Software GPR LMX 150 FINDAR Ground Penetrating Radar

Sensors & Software GPR LMX 150 FINDAR Ground Penetrating Radar

AFL SMLP4-4-EF SM MM Encircled Flux Compliant Fiber Optic Loss Test Set

$2,795.00
Availability: In stock
SKU
1D66

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

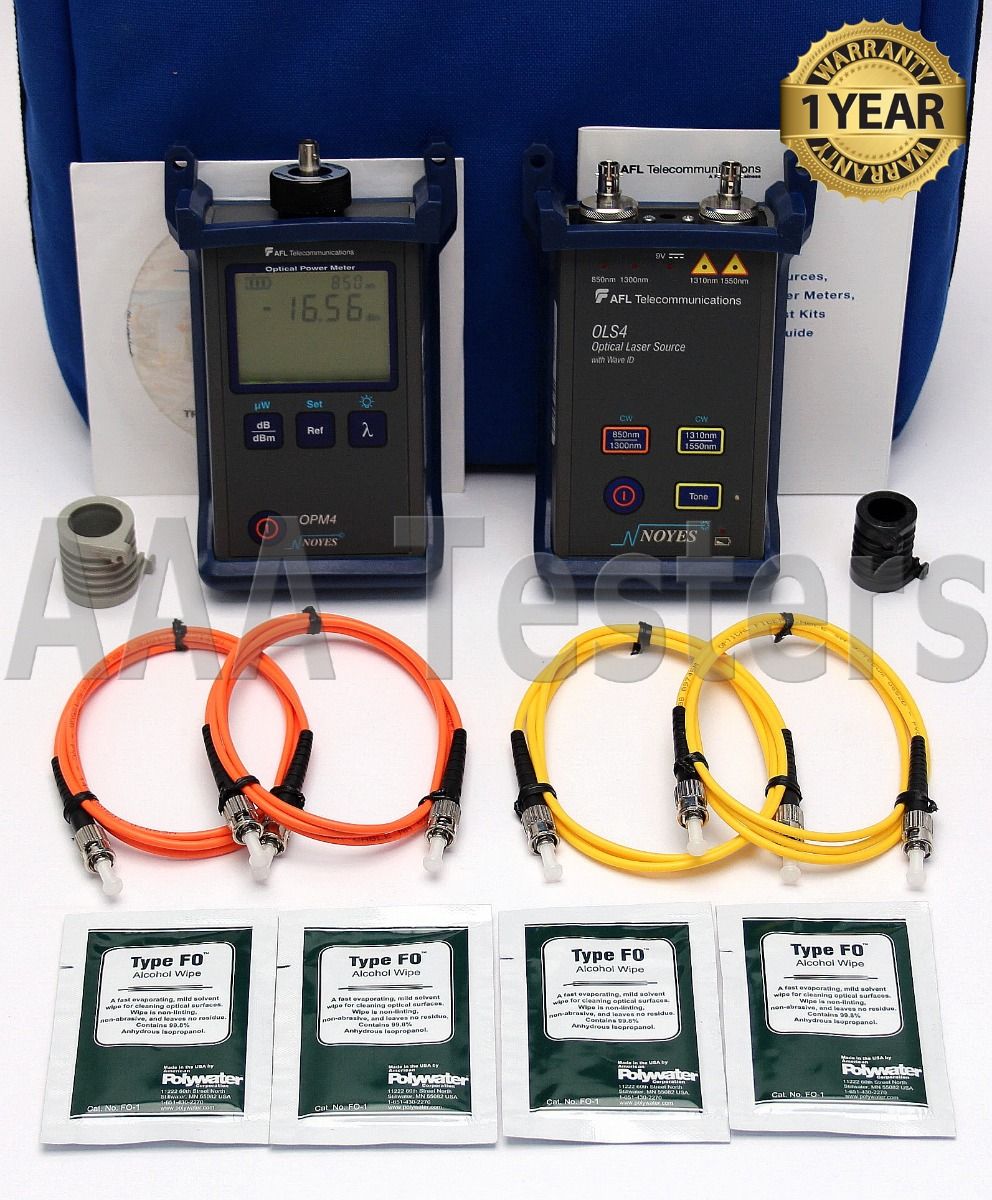

  • AFL Noyes OLS 4-EF Encircled Flux SM MM Fiber Optic Laser Source w/ Wave ID (BC# -L/T*)
    • SM Source:
      • 1310nm
      • 1550nm
    • MM Source:
      • 850nm
      • 1300nm
  • AFL Noyes OPM 4-2D SM MM Power Meter (BC# -L/T*)
    • Power Meter:
      • 850nm
      • 1300nm
      • 1310nm
      • 1490nm
      • 1550nm
  • Carrying Case (G)
Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

AFL SMLP4-4-EF SM MM Encircled Flux Compliant Fiber Optic Loss Test Set

SMLP4-4-EF
Loss test kits combine OLS4-EF quad light source with OPM5 or OPM4 optical power meters providing both single-mode (1310/1550 nm) and multimode (850/1300 nm) loss test capability.

Designed for use in outside plant environments
AFL OLTS are extremely rugged and withstand one-meter drops, have splash resistant controls that are easy to use with gloves on, and the field-swappable connector adapters provide flexibility and access for cleaning optical ports at time of test.

Test faster with fewer errors
AFL’s Wave ID increases test speed by performing simultaneous multi-wavelength testing that cuts loss measurement time in half or more. AFL’s automatic wavelength identification eliminates setup errors and simplifies coordination between users at opposite ends of fibre.

Features:

  • EF Complaint light sources and test kits per TIA 526-14-B and IEC 61280-4-1 Ed. 2.0
  • EF Compliant by design – no additional equipment required
  • Wave ID for error free testing of multiple wavelengths simultaneously

Applications:

  • MMF and SMF testing requiring EF Compliant equipment
  • Passive Optical Network (PON) testing
  • Certify multimode and single-mode links to TIA/EIA standards



Specifications:

Wavelength 850 ±30 nm
1300 +30/-20 nm
1310 ±20 nm
1550 ±20 nm
Spectral Width 45 nm (typ)
120 nm (typ)
5 nm (max)
5 nm (max)
Emitter Type MM: LED
SM: Laser
Safety Class Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03
Output Power ≥ -24 dBm, 50 μm multimode
0 dBm, 9 μm single-mode
Output Stability ±0.1 dB over 8 hours
±0.05 dB over 1 hour (after 15 minutes warm-up)
±0.1 dB over 8 hours (after 15 minutes warm-up)
Tone Output MM: N/A
SM: 2 kHz
Power 2 AA Batteries
Operating temperature -10 °C to 50 °C, 90 % RH (non-condensing)
Storage temperature -30 °C to 60 °C, 90 % RH (non-condensing)
Size 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in)
Weight 0.29 kg (0.65 lb)
