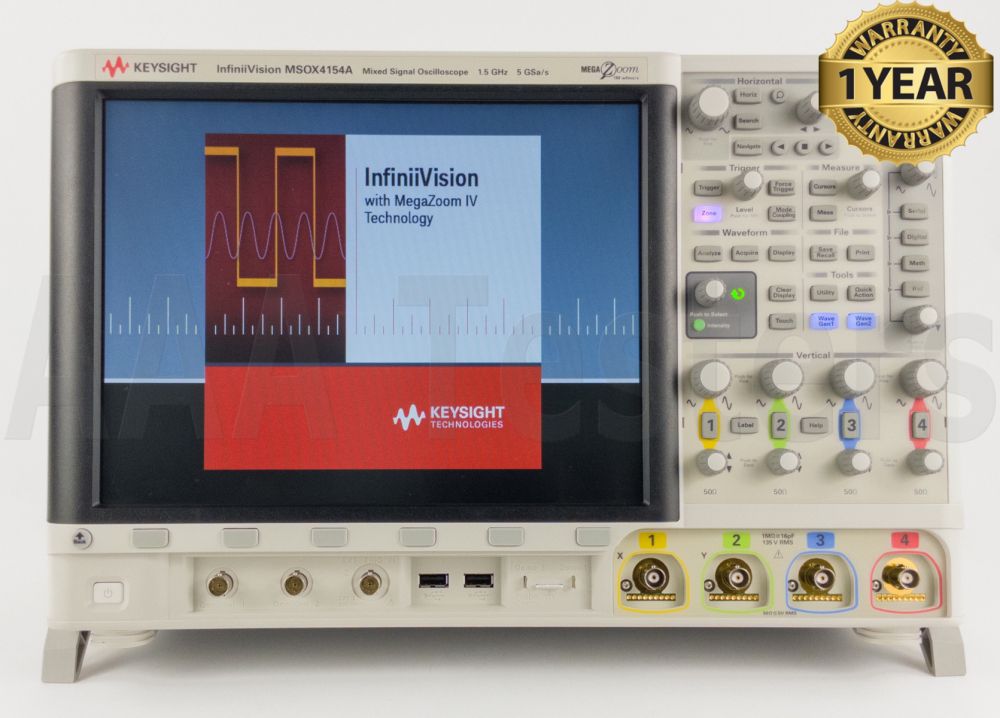

Keysight InfiniiVision MSOX4154A 1.5GHz Mixed Signal Oscilloscope

Agilent Keysight MSOX4154A 1.5GHZ Mixed Signal Oscilloscope

Oscilloscope Experience Redefined

Experience the Speed, Usability, and Integration

Imagine an oscilloscope that sees everything, triggers on anything, has the ease-of-use of a tablet device...and grows with your projects

The Keysight 4000 X-Series oscilloscopes are engineered for next-generation performance, delivering waveform update rates 20 times faster than the competition to display the most signal detail. An industry-leading 12.1-inch capacitive touch screen with innovative hardware-based zone touch triggering provides the most intuitive interface to get you answers faster. The 4000 X-Series provides maximum investment protection with fully upgradable 7-instruments-in-1.

Speed

Anomalies and elusive events are the toughest to debug. The 4000 X-Series oscilloscope redefines your debugging experience with MegaZoom IV smart memory technology. The industry-leading 1-million-waveforms-per-second update rate, means you see more of your signal behavior and can feel more confident in your design.

Usability

You may be surprised just how easy it is to use the InfiniiVision 4000 X-Series. A 12.1-inch capacitive touch screen − the industry’s largest  works just like your favorite tablet or smart phone, so debugging your devices is faster than ever before. Innovative zone touch triggering makes triggering on anything a snap. Just draw a box around signals of interest and the oscilloscope triggers on them. So, if you can see it, you can trigger on it.

Integration

The 4000 X-Series further redefines your oscilloscope experience by integrating the capabilities of seven instruments in one: oscilloscope channels, logic channels, digital voltmeter (DVM), dual-channel WaveGen function/arbitrary waveform generator, frequency response analyzer (Bode plots), 8-digit hardware counter, and serial protocol analyzer including USB. All are upgradable, including bandwidth, for the ultimate investment protection.

Key features

• One million waveforms per second update rate
• MegaZoom IV smart memory technology
• Standard segmented memory



Experience the usability

• Industry’s first capacitive touch screen
• Industry’s largest 12-inch display
• Zone touch trigger



Experience the integration

• Industry’s first 7 instruments in 1
• Industry’s first fully upgradable oscilloscope including bandwidth to 1.5GHz
• Industry’s leading application solutions
• Patented MegaZoom-IV smart memory technology
• 200MHz, 350MHz, 500MHz, 1GHz, and 1.5GHz bandwidth models
• 2/4 analog channels (DSO) and 16 digital channel Mixed-Signal Oscilloscope (MSO) models
• Simultaneous 1GHz bandwidth across all 4 channels possibility
• 12.1" WVGA (800 x 600 resolution) capacitive touch/gesture enabled color TFT LCD display
• Display up to 10 measurements simultaneously without compromising other key info
• 35 automatic measurements can be gated by cursors
• 1,000,000 waveforms/second update rate and 5GSa/s (1GHz) sample rate
• Docking panels with the capacitive touch screen add a new dimension of usability
• Standard 4Mpts segregated memory
• Industry’s first 5-instruments-in-1
• Best-in-class oscilloscope
• Integrated 16 digital channels on MSO models
• Industry-exclusive WaveGen built-in, dual-channel function/arbitrary waveform generator (optional)Integrated 3-digit voltmeter (optional)Serial protocol analyzer (optional)



Connectivity

• USB 2.0 (host x3 and device x1)
• LAN
• VGA out
• GPIB (optional)
• Both USB keyboard and mouse are supported for additional ease of use
• Standard advanced math and four cascadeable math functions
• Independent knobs per channel for fast operation

For full Agilent MSOX4154A Oscilloscope product specifications, please click here: MSOX4154A

Click here to view datasheet
