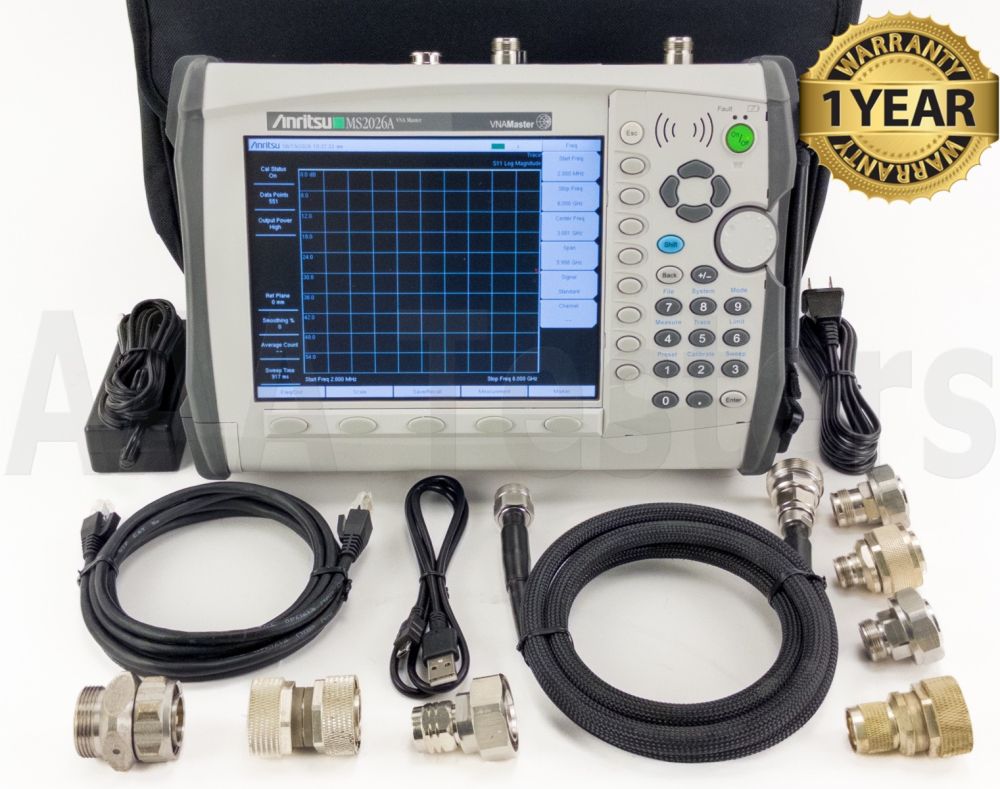

Anritsu MS2026A HandHeld VNA Master Vector Network Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Anritsu MS2026A VNA Vector Network Analyzer
The new VNA Master is a handheld Vector Network Analyzer designed to make accurate vector corrected 1-port and 1-path 2-port magnitude and phase measurements from 2 MHz to 4 GHz (MS2024A) and 2 MHz to 6 GHz (MS2026A). The MS2024A and MS2026A take advantage of the latest DSP processors technology enabling very fast measurements for both Return Loss and Distance-To-Fault measurements. High and Low power settings for 2-port measurements eliminate the need for external attenuators when performing direct gain measurements. Using Anritsu’s precision components, better than 42 dB of corrected directivity can be obtained over the entire frequency range. The internal memory can store more than 1000 traces and setups and information can easily be transferred to a computer using either a memory card, an Ethernet connection, or the USB connection.
The MS2024A and MS2026A’s wide frequency range and overall performance find applications in multiple markets. Providing 1-port and 2-port coverage down to 2 MHz fills a requirement for military/defense applications and eliminates the need for bench top VNAs in the field for S11 and S21 measurements. Both the military/defense and commercial wireless markets will appreciate the VNA Master’s portable Frequency Domain Reflectometry (FDR) based Return Loss and DTF measurements to verify system performance and locate degradations and faults in cable and antenna systems. General purpose VNA customers looking for an economical solution to make accurate S11 and S21 measurements need to look no more.
Features:
- Two-port vector network analysis (2MHz to 6 GHz)
- >42 dB directivity
- Smith Charts, Phase, and Group Delay measurements
- Wide dynamic range 100 dB typical
- Excellent DANL (with preamp): 163dBm in 1 Hz RBW
- Superior Single Side Band (SSB) Phase Noise of < 100dBc/Hz at 10 kHz offsets
- Fast sweep speed of 200 ms in 10 MHz span
Specifications:
| Frequency |
|
| Frequency Range: |
2 MHz to 6 GHz |
| Frequency Accuracy: |
25 ppm |
| Frequency Resolution |
10 Hz |
| Data Points: |
Low, Medium, High (137/275/551) |
| Interference Immunity: |
On-Channel +17dBm On-Frequency +10 dBm (RF Out), +30 dBc (RF In) |
| 1- Port Power: |
High: 0 dBm (typical) |
| 2-Port Power: |
High: 0 dBm (typical) Low: -35 dBm (typical) |
| Residual Directivity: |
42 dB (2 MHz to 6 GHz) |
|
1-Port Accuracy: |
= <0. + |20 log(1 ±10–E∆/20)| dB, typical; E∆ = Directivity – Measured Return Loss |
|
|
80 dB, 2 MHz to 3 GHz |
Return Loss: |
Range: 0 to 60 dB |
VSWR: |
Range: 1 to 65 dB |
Cable Loss: |
Range: 0 to 30 dB |
1-Port Phase: |
Range: –180º to +180º |
| General |
|
| Maximum Continuous Input into Vector Network Analyzer: |
Test Port, Type N: +22 dBm, RF Detector: +20DBm |
| Interfaces: | Type N female RF Out Port and RF In Port (50 Ω) 5-pin Mini-B USB 2. for data transfer to a PC RJ45 Connector for Ethernet 10/100 Base-T 2.5 mm 3-wire cellular headset connector |
| RF Detector: | Type N(m) 50 Ω |
| Display |
Bright daylight-viewable color transmissive LCD: Full SVGA, 8 in |
| Languages |
Built-in English, Spanish, Italian, French, German, Japanese, Korean, and Chinese. The instrument also has the capability to have two customized languages installed from Master Software Tools. |
| Size and Weight |
|
| Size: |
305 x 203 x 76 mm (12 x 8 x 3 in.) |
| Weight: |
2.9 kg (<6.4 lbs) |
| Environmental |
|
| Operating: |
–10º C to 55º C, humidity 85% or less |
| Storage: |
–51º C to 71º C |
| Altitude: |
4600 meters, operating and non-operating |
Anritsu MS2026A HandHeld VNA Master Vector Network Analyzer
Frequency Range: 2 MHz to 6 GHz
Includes Carrying Case & Accessories As Listed
Anritsu MS2026A VNA Master Vector Network Analyzer MS-2026A MS 2026A Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# -L/T*
- Anritsu MS2026A VNA Master (BC# L/T*)
- Armored Test Port CableEthernet Cable
- (2) BNC Cables
- 2GB Flash Card
- Battery Pack
- DC Car Charger
- AC Adapter/Charger
- Power Cord
- USB PC Interface Cable
- User Manual On CD-ROM
- Carrying Case w/ Strap
