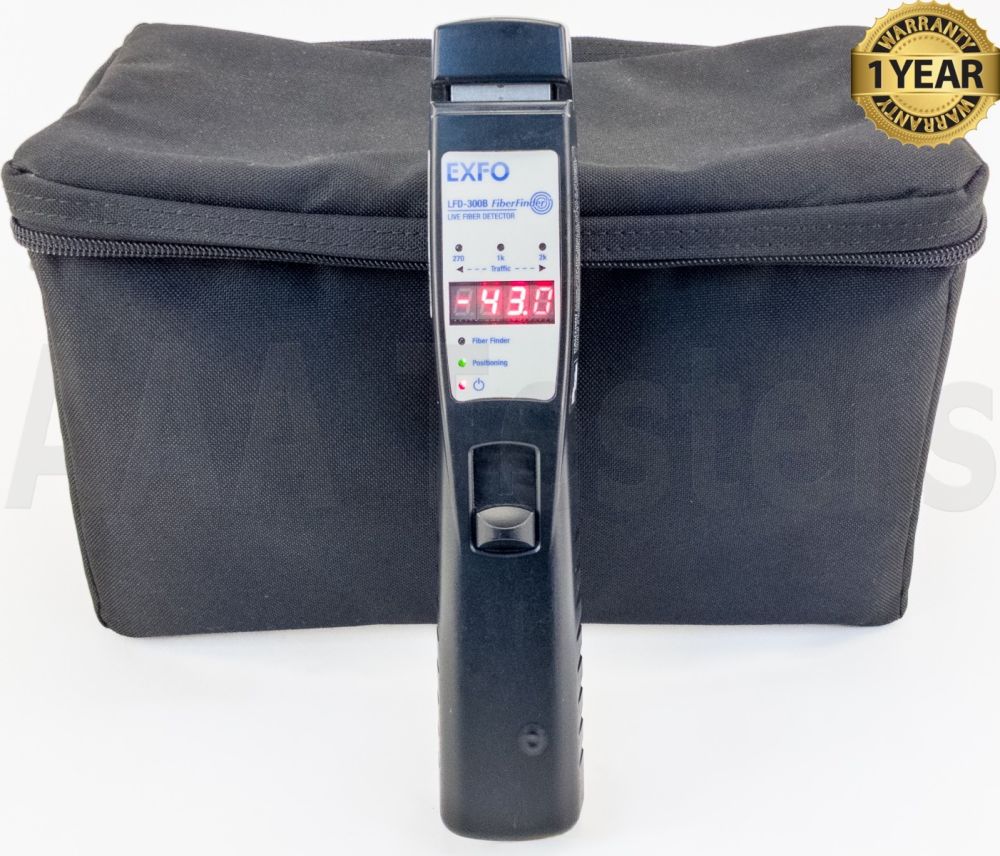

EXFO LFD-300B FiberFinder Live Fiber Detector
$699.00
Availability:
In stock
SKU
4F110
Condition: Refurbished
Warranty: 90 Day Exchange
EXFO LFD-300B Live Fiber Detector
A Uniquely Designed Live Fiber Identifier
For major singlemode fibers, insertion loss is a function of the bending angle. Although the angles differ, the behavior remains the same.
The LFD-300B FiberFinder brings a unique approach: the power loss is monitored as the angle is changed. Therefore, the angle is automatically optimized for each fiber type and each singlemode wavelength. This results in clear-cut advantages:
Ambient Light Offset
EXFOâ??s LFD-300B performs an ambient light offset prior to fiber bending, which makes it less sensitive to ambient light. A push-down cap can also be placed on the head-end to block intense ambient light.
Features:
Specifications:
For full EXFO LFD-300B product specifications, please click here: EXFO LFD-300B
A Uniquely Designed Live Fiber Identifier
For major singlemode fibers, insertion loss is a function of the bending angle. Although the angles differ, the behavior remains the same.
The LFD-300B FiberFinder brings a unique approach: the power loss is monitored as the angle is changed. Therefore, the angle is automatically optimized for each fiber type and each singlemode wavelength. This results in clear-cut advantages:
- Maximum loss of 1 dB guaranteed for most singlemode telecom fibers (most jacket types) and any wavelength
- No damage to the fiber: bending is always minimal, and the fiber is released when no power is detected
- Traffic detection and direction identification
- In-line, non-disruptive power estimation
- Safe to be used in long-haul applications and on high-payload fibers contrary to traditional live fiber detectors
- Optimized for 900 µm, 1.6 mm and 3 mm jackets; no need to replace the headpiece
Ambient Light Offset
EXFOâ??s LFD-300B performs an ambient light offset prior to fiber bending, which makes it less sensitive to ambient light. A push-down cap can also be placed on the head-end to block intense ambient light.
Features:
- Induces minimal loss: = 1 dB
- Locates a particular dark fiber using tone recognition (270 Hz, 1 kHz, 2 kHz)
- Three times faster test cycle (<6 s)
Specifications:
| Fiber type | 3 mm, 1.6 mm, 900 µm |
| Insertion loss (dB) Maximum guarenteed 1550 nm 1310 nm |
1 .05 .03 |
| Power range (dBm) | 25 to â??35 |
| Power measurement repeatability (dB) | ±1 |
| Test time (s) | < 6 |
| Size (H x W x D) | 245 mm x 45 mm x 55 mm (9 5/8 in x 1 ¾ in x 2 ¼ in) |
| Weight (without batteries) | 0.35 kg (0.8 lb) |
| Temperature operating storage |
0 °C to 50 °C (32 °F to 122 °F) â??40 °C to 70 °C (â??40 °F to 158 °F) |
| Relative humidity | 0 % to 93 % non-condensing |
For full EXFO LFD-300B product specifications, please click here: EXFO LFD-300B
EXFO LFD-300B FiberFinder Live Fiber Detector
Maximum loss of 1 dB guaranteed for most singlemode telecom fibers (most jacket types) and any wavelength
Safe to be used in long-haul applications and on high-payload fibers contrary to traditional live fiber detectors
Includes Carrying Case & Accessories As Listed
LFD 300B LFD300B LFD-300
EXFO LFD-300B FiberFinder LFD300B FiberFinder Live Fiber Detector Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# 23744
- EXFO LFD-300B FiberFinder Live Fiber Detector (BC# 23744-L/T*)
- LFD-300B Quick Reference Guide
- LFD-300B User Guide
- (4) AA Batteries
- AC Adapter/Charger
- Carrying Case w/ Strap
