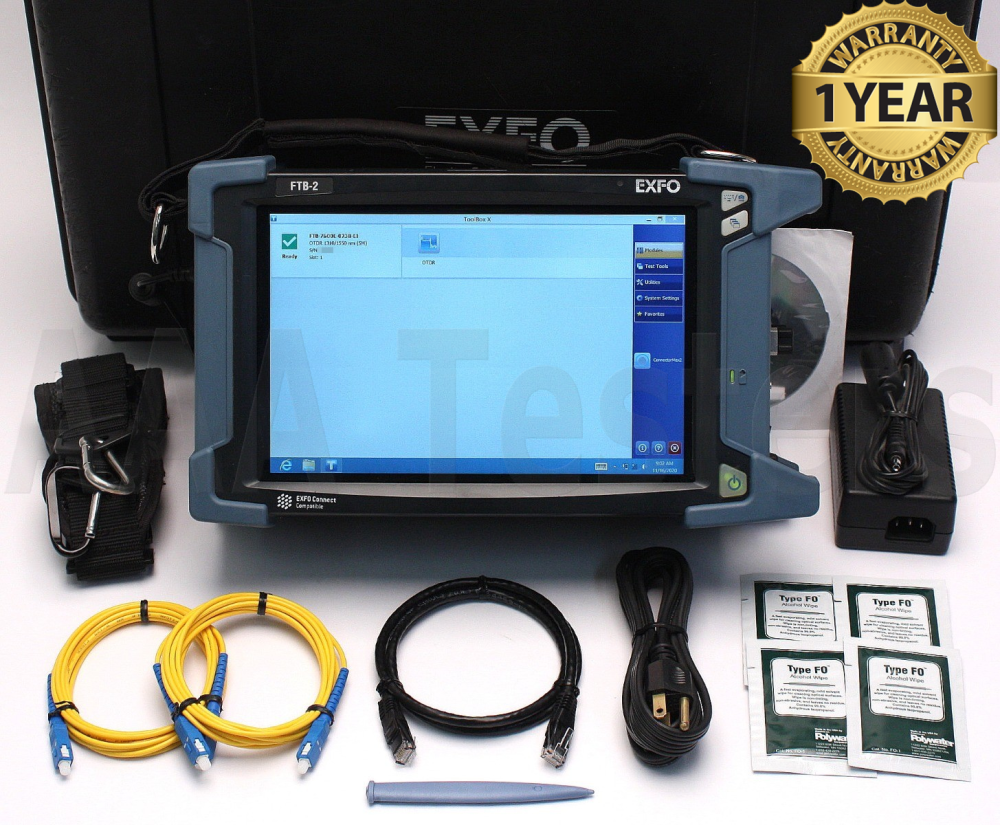

EXFO FTB-2 FTB-7600E SM Long Haul OTDR
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- EXFO FTB-2 Mainframe (BC# -L/T*)
- EXFO FTB-7600E SM OTDR Module (BC# -L/T*)
- AC Adapter/Charger
- Power Cord
- Carrying Case
EXFO FTB-2 Platform
OPTICAL PLUG-AND-PLAY OPTIONS
The platform features optical plug-and-play options that can be purchased whenever you need them: at the time of your order or later on. In either case, installation is a snap and can be performed by the user without the need for any software update.
Optical Power Meter
A high-level power meter (GeX) that can measure up to 27 dBm, the highest in the industry. This is essential for hybrid fiber-coaxial (HFC) networks or high-power signals. If used with an auto-lambda/auto-switching compatible light source, the power meter automatically syncs on the same wavelength, thus avoiding any risk of mismatched measurement.
- Extensive range of connectors
- Auto-lambda and auto-switching
- Offers measurement storage and reporting
- Choice of seven standard or coarse wavelength-division multiplexing (CWDM)-calibrated wavelengths
Visual Fault Locator (VFL)
The plug-and-play VFL easily identifies breaks, bends, faulty connectors and splices, in addition to other causes of signal loss. This basic, yet essential, troubleshooting tool should be part of every field technician's toolbox. The VFL visually locates and detects faults over distances of up to 5 km by creating a bright-red glow at the exact location of the fault on singlemode or multimode fibers (available with the Optical Power Meter only).
Specifications:
| Display | Touchscreen, color, 1280 × 800 TFT 256 mm (10.1 in) |
| Interfaces | RJ45 LAN 10/100/1000 Mbit/s Two USB 2.0 ports One USB 3.0 port Display port Headset jack |
| Storage (internal flash memory) | 64 GB |
| Battery | One rechargeable Li-ion smart battery |
| Power Supply | AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A |
| Computer | Dual-core processor/4 GB RAM/Windows 10 |
| GENERAL SPECIFICATIONS | |
| Size (H × W × D) | 199 mm × 333 mm × 119 mm (7 13/16 in × 13 1/8 in × 4 11/16 in) |
| Weight | 3 kg (6.6 lb) |
| Temperature | Operating: 0 °C to 50 °C (32 °F to 122 °F) Storage: –40 °C to 60 °C (–40 °F to 140 °F) |
| Relative humidity | ≤95 % non-condensing |
EXFO FTB-7600E Single Mode OTDR Module
Features:
- Dynamic range of up to 50.5 dB
- Dual-wavelength confirmations (1310/1550/1625 nm)
- Up to 256 000 sampling points
- Industry-leading linearity of ±0.03 dB/dB
- EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
Applications:
- Ultra-longhaul network testing
- Submarine cable testing
| Specifications | |
| Wavelength (nm) | 1310 ± 20/1550 ± 20/1625 ± 10 |
| Dynamic range at 20 µs (dB) | 50.5/50.5/48 |
| Event dead zone (m) | 1 |
| Attenuation dead zone (m) | 5 |
| Distance range (km) | 1.25, 2.5, 5, 10, 20, 40, 80, 160, 260, 400 |
| Pulse Width (ns) | 5, 10, 30, 100, 275, 1000, 2500, 10 000, 20 000 |
| Linearity (dB/dB) | ± 0.03 |
| Loss threshold (dB) | 0.01 |
| Loss resolution (dB) | 0.010 |
| Sampling resolution (m) | 0.04 to 10 |
| Sampling points | Up to 256 000 |
| Distance uncertainty (m | ± (0.75 + 0.001 % x distance + sampling resolution) |
| Measurement time | User-defined (minimum: 5 seconds ; maximum: 60 minutes) |
| Typical real-time refresh (Hz) | 4 |
| Stable source output power (dBm) | 5 |
| General Specifications | |
| Temperature | operating: 0 °C to 40 °C (32 °F to 104 °F) storage: —20 °C to 50 °C (—4 °F to 120 °F) |
| Size (H x W x D) | 97 mm x 25 mm x 260 mm (3 13/16 in x 1 in x 10 ¼ in) |
| Weight | 0.55kg (1.2 lb) |
