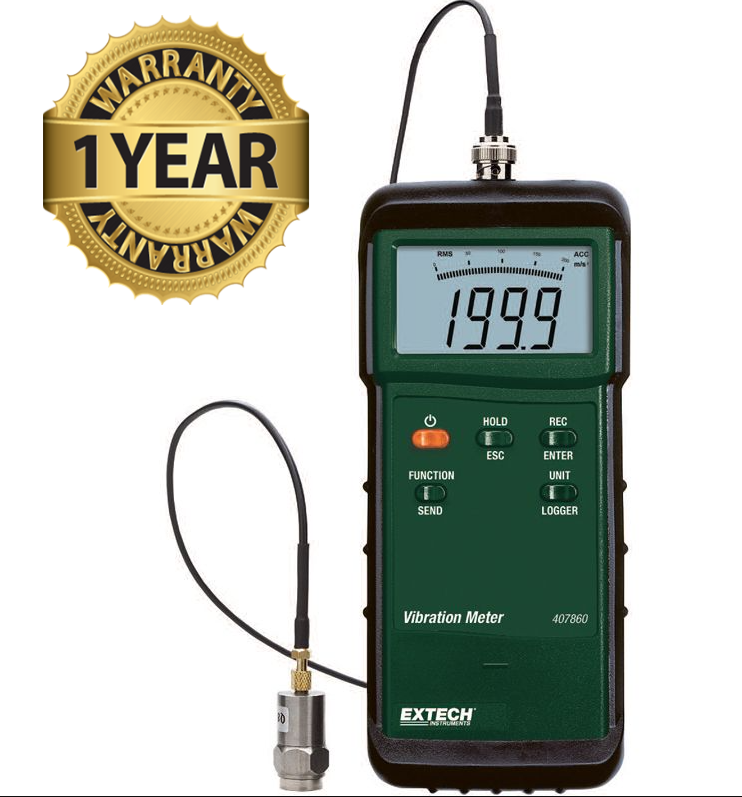

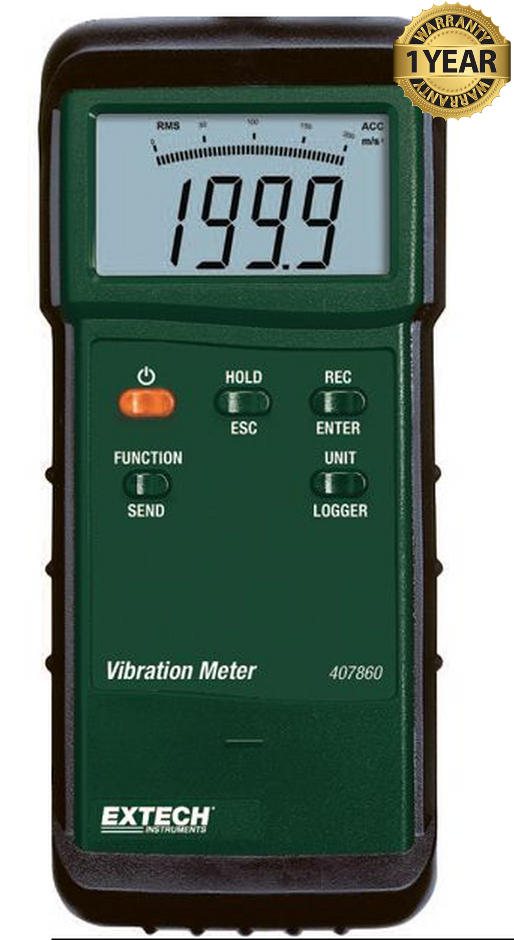

Extech 407860 Heavy Duty Vibration Meter

Extech 407860 Heavy Duty Vibration Meter

407860 Heavy Duty Vibration Meter has a Velocity range of 7.87 in./s or 200 mm/s; Acceleration range of 656 ft./s or 200 m/s, and Displacement range of 0.078 in. or 2 mm. It features a basic accuracy of 5%, a remote vibration sensor (magnetic or stud mounted) with a 39 in. (1 m) cable, RMS, Peak Value measurement modes, and auto/manual store with recall of up to 500 readings. The captured readings can be downloaded to your PC for further analysis using the optional Windows compatible data logging software.

Features:

⦁ Ranges — Acceleration: 656ft/s2 (200m/s2)
⦁ Velocity: 7.87in/s (200mm/s),
⦁ Displacement: 0.078in (2mm)
⦁ Remote vibration sensor with magnetic adapter on 39"(1m) cable
⦁ Wide frequency range of 10Hz to 1kHz
⦁ Resolution to 2ft/s2 (0.5m/s2), 0.02in/s (0.5mm/s), and 0.001in (0.005)mm
⦁ Basic accuracy of ±(5% + 2 digits)
⦁ RMS or Peak Value measurement modes
⦁ Manual/Auto store/recall up to 500 readings
⦁ Included Windows® 95/98/NT/2000/XP compatible software allows captured readings to be downloaded to your PC for further analysis
⦁ Data Hold freezes the reading in the display
⦁ Auto shut-off saves battery life
⦁ 9V battery power or optional AC adaptor
⦁ Dimensions: 7.1 x 2.8 x 1.3" (180 x 72 x 32mm)
⦁ Weight with Probe: 0.87lbs (395g)


Applications:

• Motors, bearings
• Fans
• Pumps
• Rotating machinery
• Plant maintenance

Specifications
