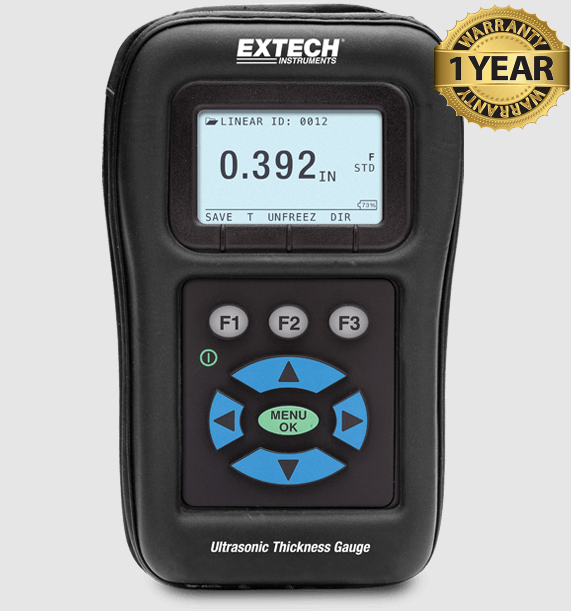

Extech TKG150 Digital Ultrasonic Thickness Gauge

$2,499.00

Availability: In stock

SKU

OP20

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Included

Extech TKG150 Digital Ultrasonic Thickness Gauge
5MHz Thickness Probe
USB Cable
Carrying Case

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Company

E-mail address

First Name

Phone Number

Last Name

Country

Comment

Description

Extech TKG150 Digital Ultrasonic Thickness Gauge

The Extech TKG150 is a Digital Ultrasonic Thickness Gauge/Data logger. The compact, rugged meter allows for non-destructive thickness measurements. It offers thickness gauges designed in compact, handheld, rugged housing which is ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures.

Wide measurement range:

5MHz probe: 0.040" to 20" of steel
10MHz probe: 0.020” to 20" of steel (optional)

Sunlight readable dot-matrix display with backlight
100K internal datalogger with export to Excel
Echo to Echo option to reduce coating errors
B-scan (visual cross section of test piece)
Vibrates on alarm
Multiple transducer options for high temperature and difficult to measure materials
Fast minimum feature to capture minimum thicknesses

Specifications:

Alarm	Audible beeping; illuminae flashing display and keypad; and vibration feedback
B-Scan (Cross Section)	Displays a visual cross section of inspection area with no correlation to distance
Differential Mode	Displays the difference from the actual thickness measurement and a user entered reference value
Echo to Echo	Measure the metal thickness only (paint and coatings do not affect base material thickness value)
Gain	Low, Standard, High
Material Velocity Calibration	0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS)
Memory	Stores 50k readings (expandable to 100k) and 5,000 waveforms
Steel Thickness	5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm)
Velocity Mode	Displays acoustic sound speed to measure thickness of unknown materials
IP Rating	IP54
Power	2 × AA (1.5V) batteries
