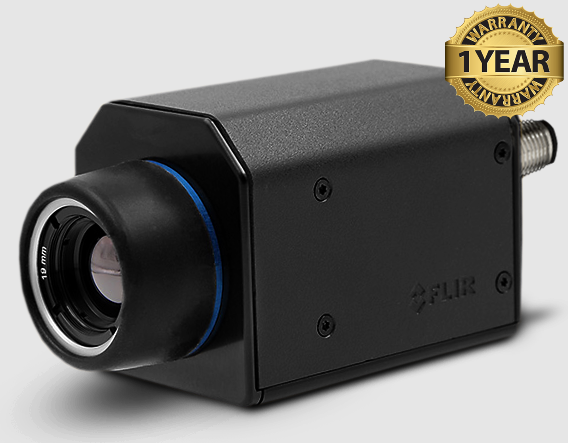

Flir A35 IR Temperature Sensor Thermal Imager
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA Only
- Flir A35 IR Temperature Sensor Thermal Imager (BC# - L/T*)
| Due to strict commerce control regulations, AAATesters does not ship or export Thermal Imagers to any countries outside of the United States. |
| International customers, please note that we cannot complete any order that includes a Thermal Imager product. AAATesters cannot complete any sale where the intent may be that a Thermal Imager product may be exported internationally by the end user. |
| All customers that are purchasing Thermal Imager products from AAATesters will be required to complete a BIS-711 end use agreement form to ensure that the Thermal Imager product will not be exported internationally. |
Flir A35 IR Temperature Sensor Thermal Imager
The FLIR Ax5-Series is the perfect solution for those applications that require the benefits of a thermal image. The FLIR Ax5-Series camera has features and functions that make it the natural choice for anyone who uses PC software to solve problems.
EXTREMELY AFFORDABLE AND COMPACT
The Ax5-Series are low-cost infrared cameras, with the FLIR A5 being the most affordable. They are ideal tools for putting thermal imaging at work in an automation or machine vision environment. All models are extremely compact. They can easily be integrated in a machine vision environment.
CHOICE OF IMAGE QUALITY
The FLIR A65 produces crisp thermal images with 640 x 512 pixels. Users that do not need this high image quality for their application can choose for the FLIR A35, which produces thermal images of 320 x 256 pixels; from the FLIR A15, which produces thermal images with 160 x 128 pixels or the FLIR A5, which produces thermal images with 80 x 64 pixels. The FLIR Ax5-Series makes temperature differences as small as 50 mk clearly visible.
GigE VISION™ STANDARD COMPATIBILITY
GigE Vision is a camera interface standard developed using the Gigabit Ethernet communication interface. GigE Vision is the first standard to allow for fast image transfer using low cost standard cables, even over long distances. With GigE Vision, hardware and software from different vendors can operate seamlessly over Gigabit Ethernet connections.
GenICam™ PROTOCOL SUPPORT
The goal of GenICam is to provide a generic programming interface for all types of cameras. Regardless of interface technology (Gigabit Ethernet, Camera Link, IEEE-1394 etc) or features implemented, the Application Programming Interface (API) will always be the same. The GenICam protocol also makes it possible to use third party software with the camera.
14-BIT TEMPERATURE LINEAR OUTPUT
Allows you to do temperature measurements, in a non-contact mode, within any 3rd party software. A built-in Gigabit Ethernet connection allows real time 14-bit image streaming to computer.
SYNCHRONIZATION
Possible to configure one camera to be master and others to be slave(s) for applications that call for more than one camera to cover the object or for stereoscopic applications
Specifications:
| Digital I/O connector type | 12-pole M12 connector (shared with Digital Synchronization and External power) |
| Digital Inputs | General Purpose, 1× opto-isolated, "0" <1.2 VDC, "1" = 2–25 VDC. |
| Digital Output Purpose | General purpose output to ext. device (programmatically set) |
| Digital Outputs | 1× opto-isolated, 2–40 VDC, max 185 mA |
| EMC | EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) |
| f-number | FOV 13: 1.1 FOV 25: 1.25 FOV 45. FOV 69: 1.4 |
| Image Frequency | 60 Hz |
| Temperature Range | 25°C to +135°C (-13 to 275°F) |
| Thermal Sensitivity/NETD | <0.05°C @ 30°C (86°F) / 50 mK |
| Accuracy | ±5°C (±9°F) or ±5% of reading |
| External Power Operation | 12/24 VDC, < 3.5 W nominal < 6.0 W absolute max |
| Voltage | Allowed range 10–30 VDC |
