Flir MR176 Imaging Moisture Meter
$799.00
Availability:
In stock
SKU
Ti126
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA Only

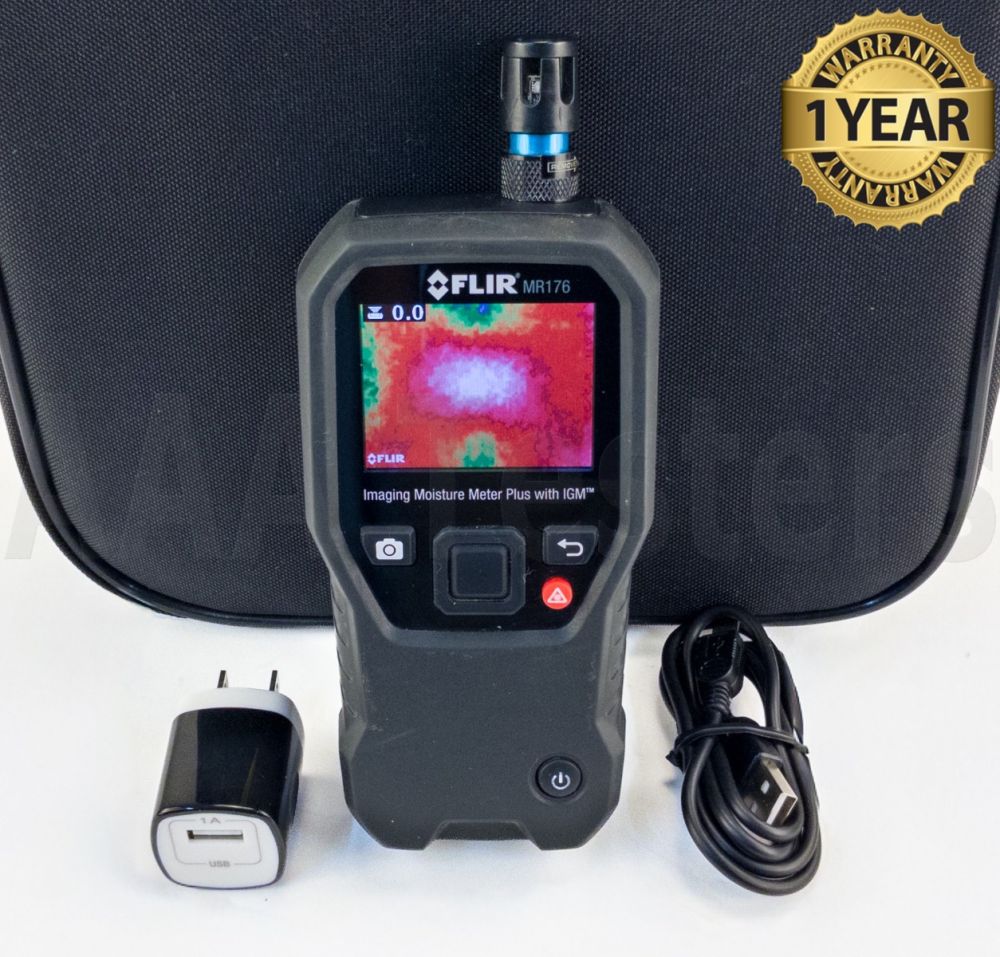

- Flir MR176 Imaging Moisture Meter
- Flir MR01 Replaceable Temperature & Relative Humidity Sensor
- AC Adapter
- USB PC Interface Cable
- Carrying Case
Request a Quote for
| Due to strict commerce control regulations, AAATesters does not ship or export Thermal Imagers to any countries outside of the United States. |
| International customers, please note that we cannot complete any order that includes a Thermal Imager product. AAATesters cannot complete any sale where the intent may be that a Thermal Imager product may be exported internationally by the end user. |
| All customers that are purchasing Thermal Imager products from AAATesters will be required to complete a BIS-711 end use agreement form to ensure that the Thermal Imager product will not be exported internationally. |

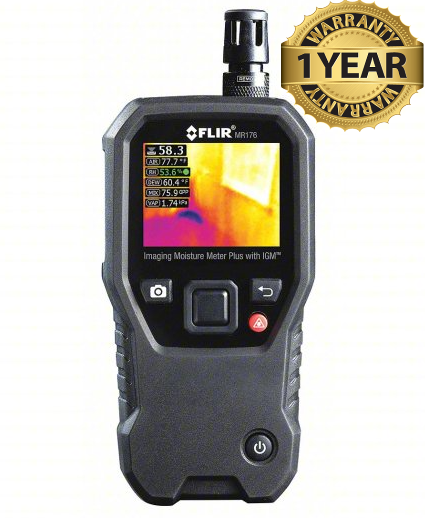

Flir MR176 Imaging Moisture Meter
Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton® 80 x 60 thermal imaging sensor, the MR176 visually guides you to the precise spot that moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature and relative humidity sensor delivers added convenience.
Specifications:
| Pin Moisture | Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only |
| Pin Moisture Groups | 9 Material Groups |
| Relative Humidity | Range 0 to 100% / Basic Accuracy 2.5%RH |
| Air Temperature | Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C) |
| Dew Point | Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C) |
| Display Type | QVGA (320 x 240 pixel) 2.3" color TFT graphical display |
| Field of View [W x H] | 51° × 38° |
| Image Update Speed Frequency | 9 Hz |
| Imaging Detector | FLIR Lepton microbolometer |
| Laser Orientation | Single laser pointer to center of thermal image |
| Sensitivity | <150 mK |
| Thermal image palettes | Iron, Rainbow, Ice, Greyscale |
| Battery operating time | 18 hours maximum |
| Battery Type | 3.7V, 3000mAh Li-ion rechargeable via micro USB |
