Flir T540 Infrared Thermal Imaging Camera
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA Only

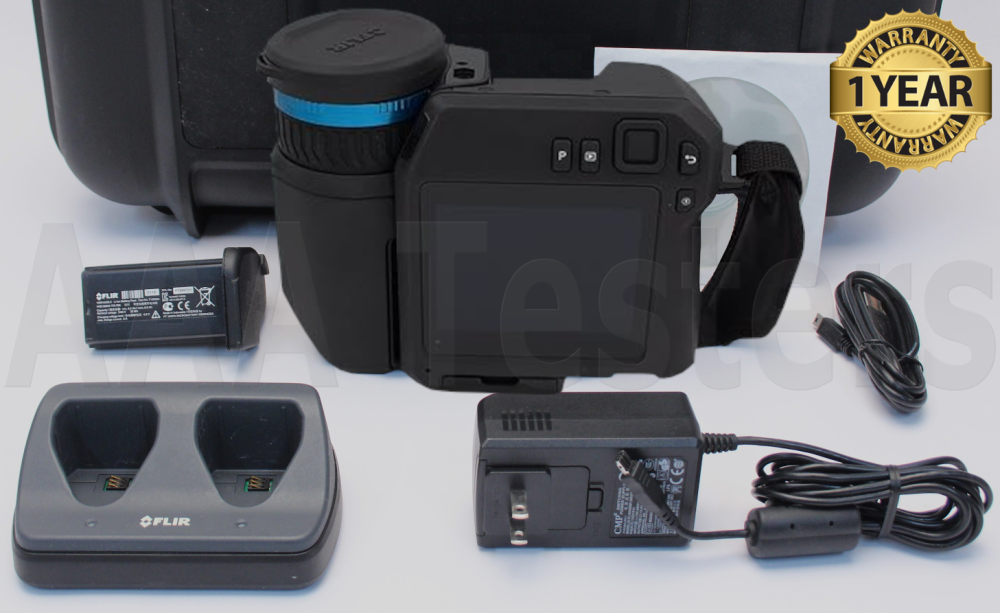

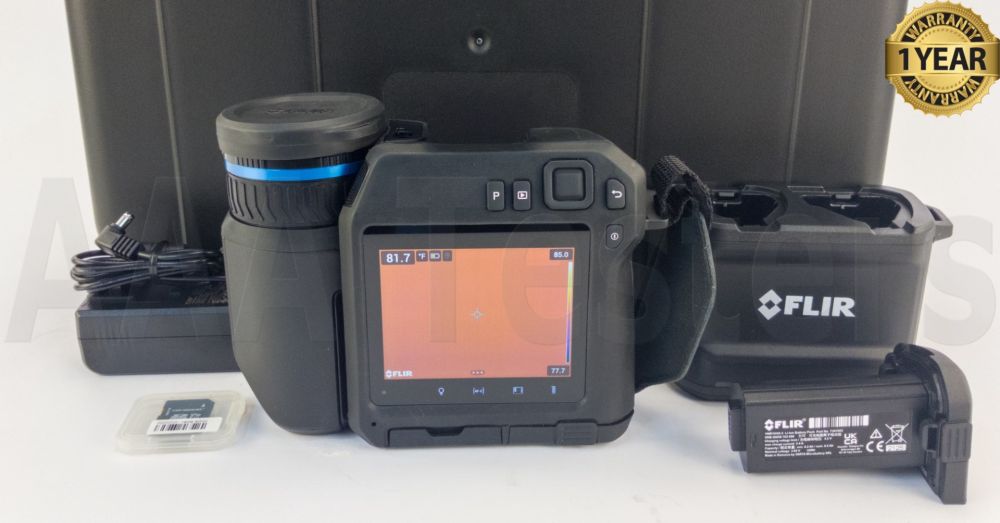

- Flir T540 Infrared Thermal Imaging Camera
- Battery Pack
- Battery Charger
- AC Adapter
- USB PC Interface Cable
- User Manual On CD-ROM
- Carrying Case
Flir T540 Infrared Thermal Imaging Camera
Diagnose potential faults in industrial, electrical, and mechanical systems, or discover temperature anomalies in R&D testing with the 464 × 348 resolution FLIR T540. This portable, ergonomic thermal camera offers advanced features like 1-Touch Level/Span and continuous laser-assisted autofocus, making it the perfect non-contact diagnostic tool for condition monitoring and research applications. Streamline electrical/mechanical surveys, troubleshooting, and repairs with Inspection Route mode, which runs pre-planned routes created in FLIR Thermal Studio Pro so users can record temperature data and imagery in a logical sequence. The built-in Macro Mode allows R&D users to quickly switch from wide angle to close-up analysis without changing the lens. Or pair the T540 with a FLIR FlexView® dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning. When coupled with Research Studio software, the T540 helps engineers assess unexpected hot spots and find potential design flaws.
Specifications:
| IR resolution | 464 × 348 pixels |
| Thermal Sensitivity/NETD | <30 mK, 42° @ 30°C (86°F) <40 mK, 24° @ 30°C (86°F) <50 mK, 14° @ 30°C (86°F) <40 mK, 80° @ 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Field of view (FOV) | 42° × 32° 24° × 18° 14° × 10° 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Resolution | 464 x 348 |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera FOV | 53° × 41° |
| Digital Zoom | 1-6x continuous |
| f-number | 1.1, 42° 1.3, 24° 1.5, 14° 1.3, 80° ° |
| Field of View | 42° × 32° 24° × 18° |
| Field of view (FOV) | 42° × 32° 24° × 18° 14° × 10° 80° × 63° |
| Focal Length | 10 mm (0.39 in.), 42° 17 mm (0.67 in.), 24° 29 mm (1.41 in.), 14° 5 mm (0.19 in.), 80° |
| Focus | Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual |
| Laser Alignment | Position is automatically displayed on the infrared image |
