Flir T530 Infrared Thermal Imaging Camera
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA Only

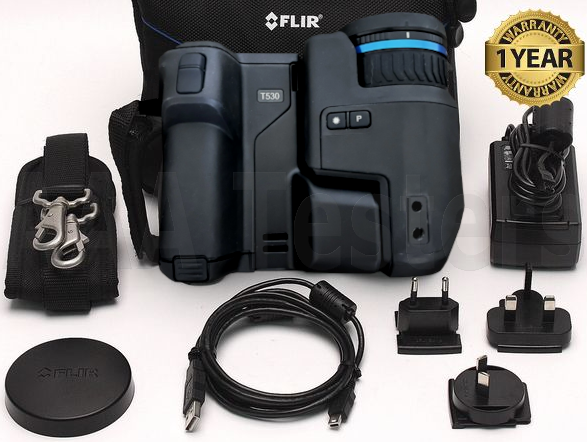

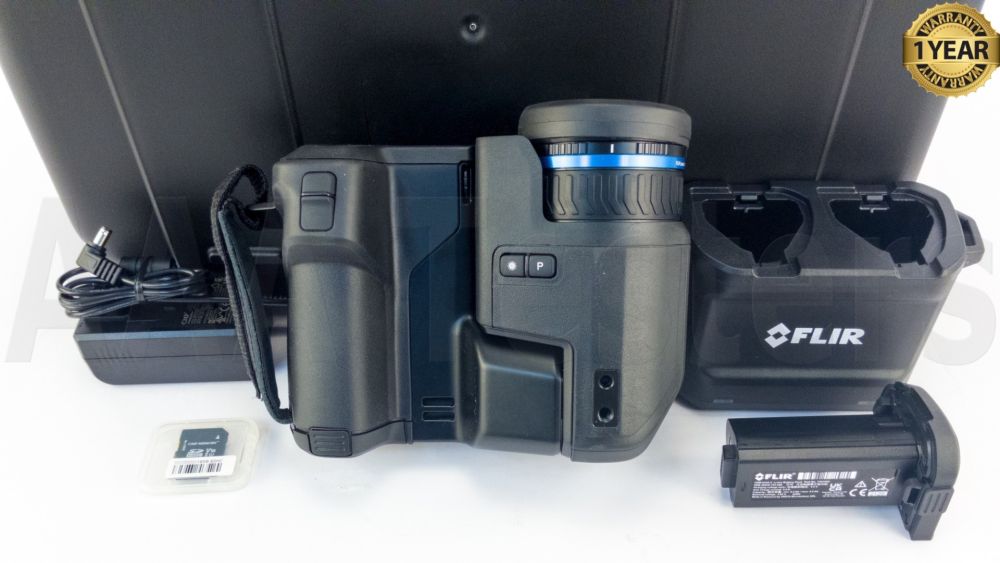

- Flir T530 Infrared Thermal Imaging Camera
- AC Adapter
- USB PC Interface Cable
- Carrying Case
Flir T530 Infrared Thermal Imaging Camera
The FLIR T530 has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180° rotating lens platform and a bright 4" LCD, the FLIR T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR’s industry-leading image quality ensure you’ll find and diagnose problems quickly. With on-board Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro. Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. Pair the T530 with a FLIR FlexView® dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens.
Specifications:
| IR resolution | 320 × 240 (76,800 pixels) |
| Thermal Sensitivity/NETD | <30 mK, 42° @ +30°C (+86°F) <40 mK, 24° @ +30°C (+86°F) <50 mK, 14° @ +30°C (+86°F) <40 mK, 80° @ +30°C (+86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Field of view (FOV) | 42° × 32° 24° × 18° 14° × 10° 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera FOV | 53° × 41° |
| f-number | 1.1, 42° 1.3, 24° 1.5, 14° 1.3, 80° |
| Focal Length | 10 mm (0.39 in.), 42° 17 mm (0.67 in.), 24° 29 mm (1.41 in.), 14° 5 mm (0.19 in.), 80° |
| Focus | Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual |
| Image Frequency | 30 Hz |
| Minimum Focus Distance | 0.15 m (0.49 ft.), 42° 0.15 m (0.49 ft.), 24° 1.0 m (3.28 ft.), 14° Macro mode 103 µm as option to 24° 0.10 m (3.9 in), 80° |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); Optional Calibration: 300°C to 1200°C (572°F to 2192°F) |
