Flir T560 Infrared Thermal Imaging Camera
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA Only
- Flir T560 Infrared Thermal Imaging Camera
- Battery Charger
- AC Adapter
- USB PC Interface Cable
- User Manual On CD-ROM
- Carrying Case

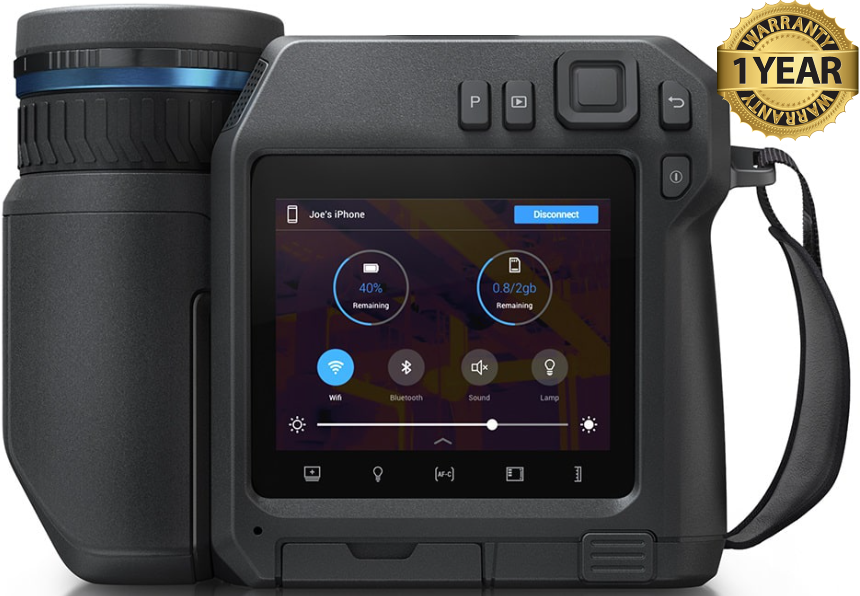

Flir T560 Infrared Thermal Imaging Camera
Troubleshoot hot spots, find hidden faults, and confirm repairs quickly with the ergonomic, high-resolution FLIR T560. This 640 × 480 (307,200 pixel) thermal imaging camera has a bright 4" LCD and a 180° rotating lens platform, so you can easily and comfortably diagnose electrical or mechanical issues, even in hard-to-reach areas. Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure you’ll record accurate temperature measurements every time. Pair the T560 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens. With on-board FLIR Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro. Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.
Specifications:
| IR resolution | 640 × 480 pixels |
| Thermal Sensitivity/NETD | <50 mK @ 30°C/86°F (14° lens), <40 mK @ 30°C/86°F (24° lens), <30 mK @ 30°C/86°F (42° lens), <50 mK @ 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Field of view (FOV) | 42° × 32° 24° × 18° 14° × 10° 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use |
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Resolution | 640 × 480 |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera FOV | 53° × 41° |
| Digital Zoom | 1–8× continuous |
| f-number | 1.1, 42° 1.3, 24° 1.5, 14° 1.3, 80° |
| Field of View | 42° × 32° 24° × 18° |
| Focus | Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual |
| Minimum Focus Distance | 0.15 m (0.49 ft.), 42° 0.15 m (0.49 ft.), 24° 1.0 m (3.28 ft.), 14° Macro mode 50 µm as option to 24° 0.10 m (3.9 in), 80° |
| Minimum Focus Distance with MSX | 0.65 m (2.13 ft.), 42° 0.5 m (1.64 ft.), 24° 1.0 m (3.28 ft.), 14° |
