FLIR T865 Infrared Thermal Imaging Camera
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA Only

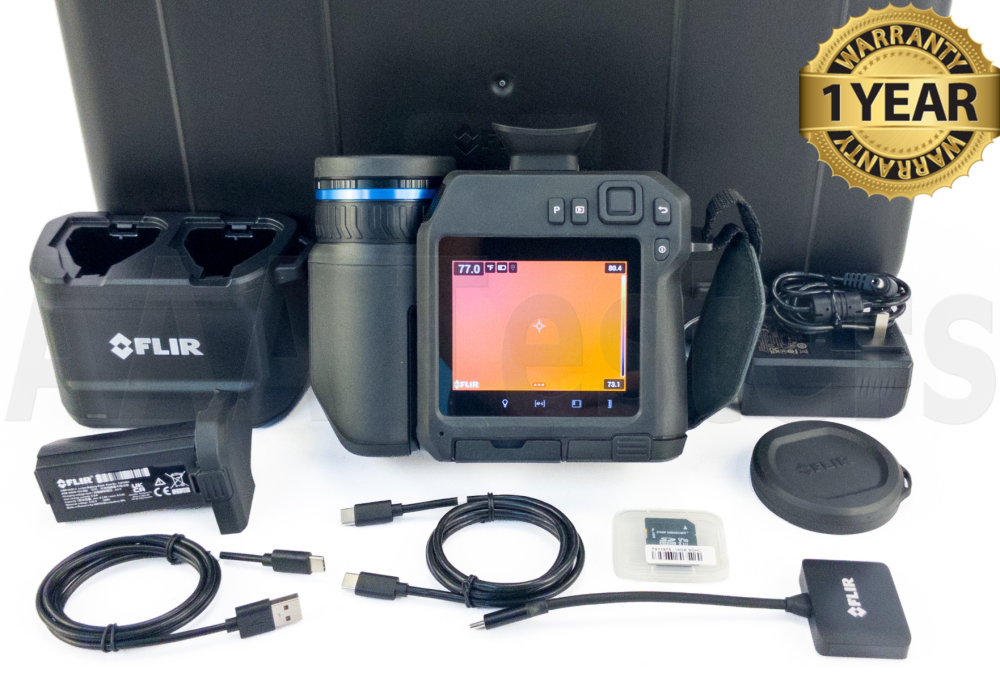

- FLIR Systems T865 Infrared Thermal Imaging Camera
- Battery Pack
- Battery Charger
- AC Adapter
- USB PC Interface Cable
- User Manual On CD-ROM
- Carrying Case

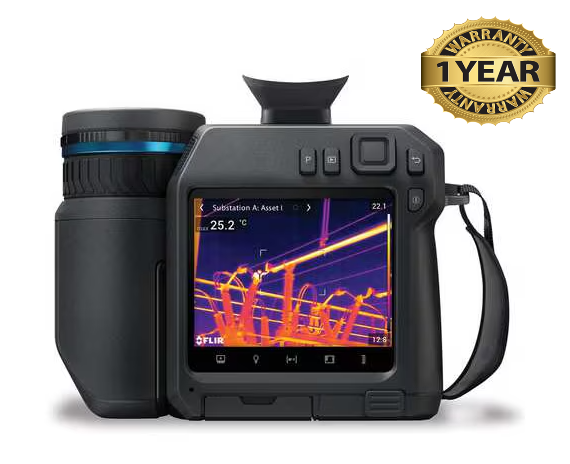

FLIR T865 Thermal Imager
The FLIR T865 thermal imaging camera is a non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications. With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser–assisted autofocus, you'll get highly accurate temperature measurements every time. Pair the T865 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning; or choose a 6° FOV IR lens to perform inspections on small targets from long distances. The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.
Specifications:
| IR resolution | 640 × 480 pixels |
| Spectral Range | 7.5 - 14.0 µm |
| f-number | 1.5 |
| Thermal Sensitivity/NETD | T865 14° (Science): <50 mK at 30°C (14° lens) T865 24° (Science): <40 mK @ 30°C (24° lens) T865 42° (Science): <30 mK @ 30°C (42° lens) T865 24° + 14° (Science): <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) T865 24° + 42° (Science): <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens) T865 24°, 14° + 42° (Science): <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) T865 42° + 14° (Science): <30 mK at 30°C (42° lens), <50 mK at 30°C (14° lens) |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Digital Zoom | 1-8x continuous |
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| Image File Format | Standard JPEG with measurement data included |
| Image Storage Mode | Infrared, visual, MSX®, Picture-in-Picture |
| METERLiNK | Yes |
| Time Lapse | 10 sec to 24 hrs |
| Laser Pointer | Yes |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
