Fluke 709H Precision Hart Loop Calibrator
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Fluke 709H Precision Loop Calibrator
Hart communications
The 709H adds HART communications and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication troubleshooting tool.
In the communicator mode the user will be able to read basic device information, perform diagnostic tests, and trim the Ma output on most HART enabled. In the past, this could only be done with a dedicated communicator, a high-end multifunction calibrator, or a laptop computer with HART modem.
Fluke 709H will allow virtually technician to service and support HART devices.
Saving time, getting answers
In addition, the 709H offers:
- Logging of HART data in the field. Once recorded by the 709H in the field, the 709H/ TRACK software can upload the HART configuration of up to (20) HART devices in your and output data in either (.csv) or (.txt) format.
- Data logged mA loop measurements and HART data can be recorded from a particular transmitter for troubleshooting and loop tuning. The data log feature offers selectable capture with recording intervals of 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions.
Each data sample contains the709H mA measurement, all four process variables, and the standard status conditions.
Key features
- mA precision loop calibrator that communicates with and tests HART smart instruments
- Features best-in-class accuracy at 0.01% reading
- Provides intuitive user interface with Quick-Set knob for fast setup
- Includes built in selectable 250 Ω resistor for HART communication
- Features 24 V DC loop power with mA measure mode (-25% to 125%)
Specifications:
| Functions | mA source, mA simulate, mA read, mA read/loop power, and volts read. |
| Ranges | mA (0 to 24mA) and Volts (0 to 30VDC) |
| Resolution | 1uA on mA ranges and 1mV on voltage range |
| Accuracy | 0.01% +/- 2 counts all ranges (@23° +/- 5°C) |
| Operating temperature range |
-10 °C to 55 °C (14 °F to 131°F) |
| Humidity range | 10 to 95% non-condensing |
| Stability | 20ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C |
| Display | 128 x 64 pixels, LCD Graphic w/backlight, .34” high digi |
| Power | 6 AAA alkaline |
| Battery Life | ≥ 40 hours continuous use (measure mode using alkaline) |
| Loop Compliance Voltage | 24VDC @ 20mA |
| Over-Voltage Protection | 240VAC |
| Overload Current Protection |
28mA DC |
| EMC | EN61326 Annex A (Portable Instruments) |
| Dimensions (L x W x D) | 15 cm x 9 cm x 3 cm (6” x 3.6” x 1.3”) |
| Weight | 0.3 kg (9.5 ounces) |
Fluke 709H Precision Loop Calibrator
Best-in-class accuracy at 0.01% reading

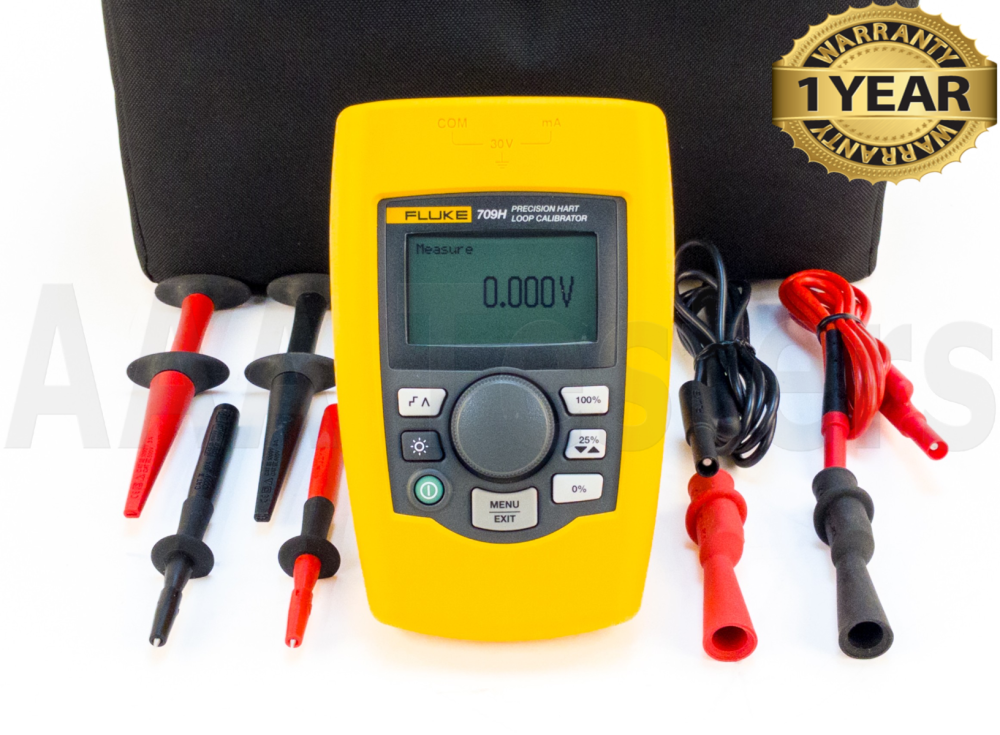

Includes Carrying Case & Accessories As Listed
Fluke 709H Precision Loop Calibrator Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
- Fluke 709H Precision Loop Calibrator
- (2) Fluke Flexible Test Leads
- (2) Alligator Clips
- (2) Test Pins
- User Manual On CD-ROM
- Carrying Case
