Fluke 772 Milliamp mA Process Clamp Meter Non Contact Tester
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

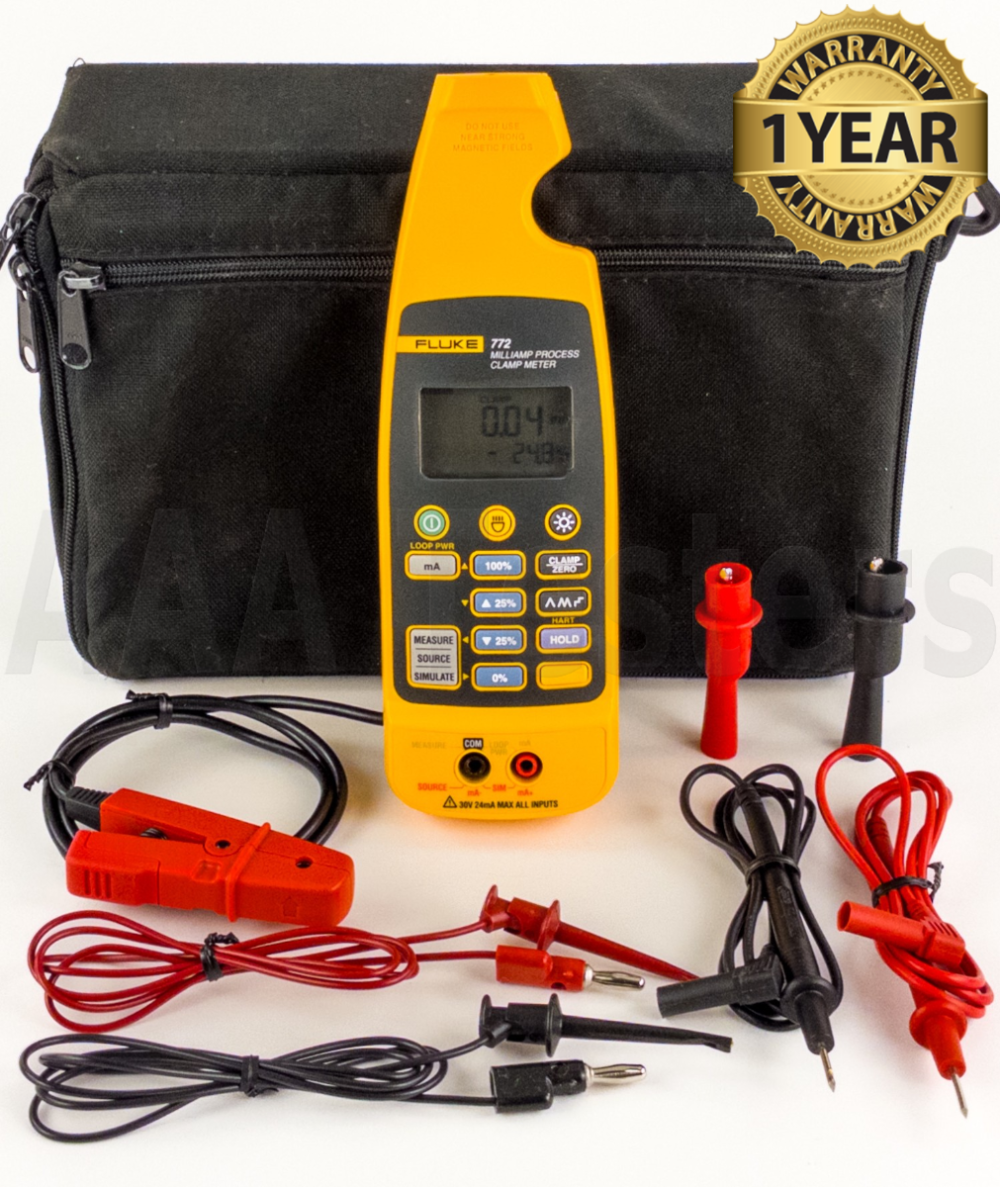

- Fluke 772 Milliamp Process Clamp Meter (BC# 19601M-L/T*)
- (2) Fluke Hard Point Test Leads
- Carrying Case (G)

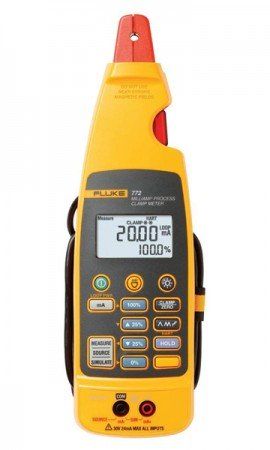

Fluke 772 Milliamp Process Clamp Meter
If you need more time in your busy day take a good look at the Fluke 772 mA Clamp Meter. It’s designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.
Measure mA signals for PLC and control system analog I/O without breaking the loop
- Measures low level dc current
- Correlate process indication with real physical value
Measure output signals from transmitters without breaking the loop
- Maintain and troubleshoot process and automation equipment without breaking the loop
- No disruption to the process
Detachable clamp with extension cable
- Measurements in tight locations
- Enables measurements in difficult situations
Measurement Spotlight
- Illuminates hard to see wires in dark enclosures
- Measurement process is easier and quicker
Measure up to 99.9 mA range non-contact
- Wide range of measurements
- Measures 10 to 50 mA signals in older control systems
Automatic power off
- After 15 minutes and 2 minute automatic off for backlight and spotlight
- Saves battery life
Specifications:
| Influence of earth’s field | < 0.12 mA |
| Battery | (4) 1.5 V, Alkaline, IEC LR6 |
| Working hours | 12 hours @ 12 mA source into 500 ohms |
| Size (HxWxL) | 41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in) |
| Weight | 415 g (14 oz) |
| Operating temperature | -10 °C to 50 ºC |
| Storage temperature | -25 °C to 60 °C |
| Operating humidity | < 90 % @ < 30 °C; < 75 % @ 30 ~55 °C |
| Operating altitude | 0 ~ 2,000 m |
| Storage altitude | None |
| IP Rating | IP 40 |
| Vibration requirements | Random 2 g, 5 Hz to 500 Hz |
| Drop test | Passes 1 meter drop test (except the jaw) |
| EMI, RFI, EMC | Meets applicable requirements in EN61326-1 Note: For current measurement w/jaw, add 1 mA to specification for EMC field strengths of 1 V/m up to 3 V/m |
| Temperature coefficients | 0.1(/°C x specified accuracy for temperature < 18 °C or > 28 °C) |
