Fluke 190-204 Series III Scopemeter 4 Channel 200MHz Oscilloscope
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Fluke 190-204 Series III Scopemeter 4 Channel 200MHz Oscilloscope (BC# -L/T*)
- (4) 10:1 250MHz Voltage Probe Sets
- USB PC Interface Cable
- AC Adapter/Charger
- Carrying Case (G)

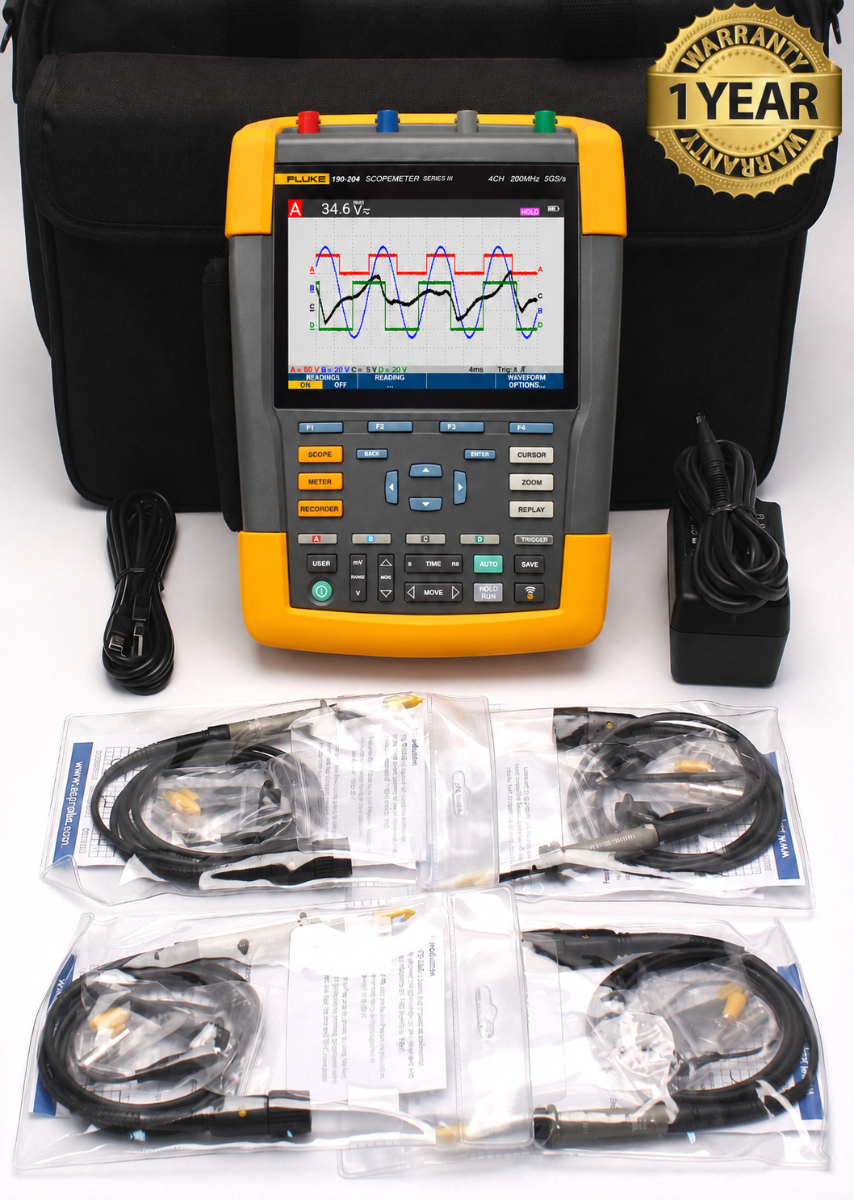

Fluke 190-204 Series III Scopemeter 4 Channel 200MHz Oscilloscope
The Fluke 190-204 Series III ScopeMeter is a portable, four-channel oscilloscope with a 200 MHz bandwidth. It displays electrical signals as waveforms, showing how voltage changes over time. This allows technicians to examine signal shape, amplitude, frequency, and timing when troubleshooting industrial machinery, electronic controls, and power conversion equipment.
Its four independently isolated inputs allow users to compare signals from multiple test points, including circuits with different ground references. This is useful for examining motor drives, three-phase systems, and control circuits. The instrument is rated CAT III 1000 V and CAT IV 600 V, subject to the specified probe ratings and measurement conditions.
The 190-204-III captures detailed waveforms at sampling rates of up to 2.5 billion samples per second with two channels active, or 1.25 billion samples per second with all four channels active. Its waveform memory stores up to 10,000 samples per channel. These capabilities help reveal fast transitions, electrical noise, and disturbances that a simple numerical reading may miss.
To simplify troubleshooting, Connect-and-View triggering automatically stabilizes the waveform display. ScopeRecord captures signals over longer periods, while TrendPlot tracks measurement changes to help locate intermittent faults. The instrument also provides automatic capture and replay of 100 screens, plus FFT analysis for examining the frequency content of a signal. These tools help technicians investigate problems that occur only occasionally.
Designed for field use, the ScopeMeter combines a bright color display, an IP51-rated enclosure, and rechargeable battery operation of up to seven hours. Users can save waveforms, screenshots, and settings, then transfer them through USB or optional Wi-Fi connectivity. FlukeView-2 software supports further analysis and documentation, helping maintenance teams record findings and compare equipment performance over time.
Features:
- Four independently isolated input channels
- 200 MHz bandwidth
- Sampling up to 2.5 GS/s with two channels active or 1.25 GS/s with four channels active
- Waveform memory of 10,000 samples per channel
- Connect-and-View automatic triggering
- Up to four simultaneous automatic scope measurements
- ScopeRecord recording with 30,000 points per channel
- TrendPlot recording for tracking measurements over time
- Automatic capture and replay of up to 100 screens
- FFT frequency spectrum analysis
- Reference waveform comparison and pass/fail testing
- Bright color display
- Rechargeable battery providing up to seven hours of operation
- IP51-rated enclosure
- CAT III 1000 V / CAT IV 600 V safety ratings
- USB storage and PC connectivity
- Optional Wi-Fi connectivity
- FlukeView-2 software support for analysis and reporting
| Specification | Details |
|---|---|
| Model | Fluke 190-204-III |
| Bandwidth | 200 MHz |
| Channels | 4 independently isolated inputs |
| Maximum sampling rate | 2.5 GS/s with 2 channels; 1.25 GS/s with 4 channels |
| Rise time | 1.7 ns |
| Vertical resolution | 8-bit |
| Input coupling | AC or DC |
| Input impedance | 1 MΩ ±1%, parallel with 15 pF ±2.25 pF |
| Direct input sensitivity | 2 mV/div–100 V/div |
| Time base | 2 ns/div–4 s/div |
| Scope memory | 10,000 samples/channel |
| ScopeRecord memory | 30,000 points/channel |
| Glitch capture | 8 ns under specified conditions |
| Replay | 100 screens |
| Display | Color LCD, 133 × 90 mm |
| Screen resolution | 1120 × 765 pixels |
| Safety rating | CAT III 1000 V / CAT IV 600 V with appropriate probes |
| Direct BNC rating | CAT IV 300 V |
| Enclosure protection | IP51 |
| Battery | BP291 lithium-ion, 10.8 V, 5000 mAh |
| Battery runtime | Up to 7 hours, low backlight |
| Charging time | Approximately 5 hours |
| Power supply | 100–240 V AC, 50–60 Hz |
| Connections | USB-A host; mini-USB-B PC |
| Wireless connection | Optional Wi-Fi adapter |
| Operating temperature | 0°C–40°C during battery operation |
| Storage temperature | −20°C–60°C |
