Fluke FEV150 EV Charging Station Analyzer
Condition: Refurbished/Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Fluke FEV150 EV Charging Station Analyzer (BC# -L/T*)
- FEV-CON-TY1 Connector Cable
- Carrying Case

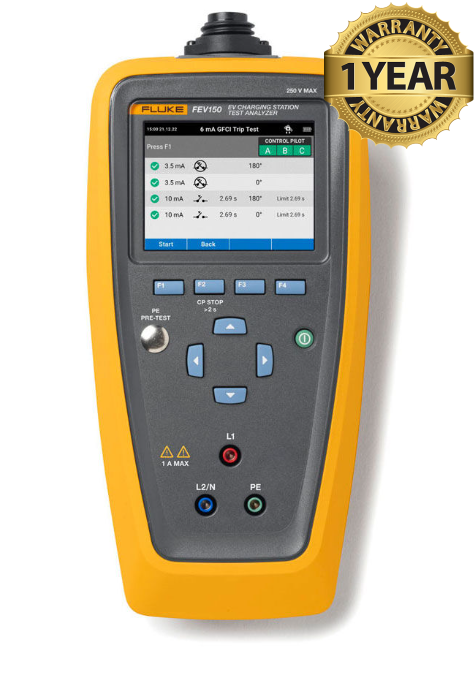

Fluke FEV150 EV Charging Station Analyzer
The FEV150 is a complete solution for safety and performance testing of AC EV charging stations with Type 1 (J1772) or Tesla type connectors. Deliver uptime reliability with Fluke’s next generation of EV Charging test solutions, designed for technicians to perform and document multiple tests safely, quickly, and efficiently without carrying multiple tools.
The all-in-one solution and bi-directional functionality includes TruTest™ EV Charging software. TruTest™ integrates seamlessly with the FEV150 via Bluetooth connection to provide predetermined test plans, pass/fail indications, and pre-test voltage safety information. Use the FEV150 and TruTest™ automation to get the job done safely, faster, and with less potential for errors.
The FEV150 EV Charging Station Analyzer is compliant with J1772 standards.
Applications:
- Safety testing of charging stations
- Performance testing of charging stations
- Troubleshooting/repair of charging stations
Available measurements:
- PE (protective) earth pre-test to ensure no dangerous voltage is present
- Visual inspection
- GFCI Trip Test
- Nominal voltage
- Auto control pilot (CP) with waveform analysis
- Error testing
- Proximity pilot
- Manual Control Pilot
- Advanced GFCI™ Test
TruTest™ is the modern, fast, and reliable software platform to cover your reporting and documentation needs. Now you can perform asset management, data storage, and reporting on a single platform that seamlessly integrates with the FEV150 on any job. Whether you are analyzing Control Pilot waveforms or safety testing the system, TruTest™ guides you through each test and generates easy-to-understand reports for clients. Bi-directional communication between the FEV150 and TruTest™ software allows for faster, smarter workflows. Create customized test plans in TruTest™, push configurations directly to your analyzer, and eliminate wasted time re-entering project data.
- Easily manage measurement data from EVSE inspections
- Quickly create inspections and reports
- Control Pilot waveform analysis with easy pass/fail visuals
- Compare site data to previous site data to see changes over time
- Quickly access the latest firmware to update your FEV150
- Faster setup through TruTest™ bi-directional support
Specifications:
| Test/function | Display Range | Measurement Range | Operational Error | Nominal values |
| PE pre-test | ||||
| Touch voltage, safe range | ≤50 V ac/dc | -50% | -- | |
| Touch voltage, dangerous range | >50 V ac/dc | 0% | -- | |
| Visual inspection checklist | · | -- | -- | |
| GFCI Trip | ||||
| Quick trip | 30 mA, trip time limit: 0.56 s | Test current: 0% to 10% | 100 V ac to 253 Vac, 45 Hz to 66 Hz | |
| Trobouble shooting 6 mA GFCI | 3.5 mA, no trip | Test current: -10% to 0% | ||
| 10 mA, trip time limit: 2.69 s | Test current: 0% to 10% | |||
| Trobouble shooting 20 mA GFCI | 6 mA, no trip | Test current: -10% to 0% | ||
| 30 mA, trip time limit: 0.56 s | Test current: 0% to 10% | |||
| Nominal voltage | ||||
| L1-L2/N | 0 V ac to 280 Vac | 0 Vac to 253 Vac | ±(3% + 3 digits) | 40 Hz to 70 Hz, crest factor 2 |
| Frequency | 40.00 Hz to 70.00 Hz | ±0.20 Hz | -- | |
| CP signal analysis | ||||
| Voltage | -15.000 V to 15.000 V |
-15.000 V to -2.000 V, 2.000 V to 15.000 V |
±0.5 % | RIN: 1 MΩ 0.9000 kHz to 1.1000 kHz; UCP+ >2.000 V, UCP- <-2.000 V |
| PWM duty cycle | 2.0 % to 98.0 % | 3.0 % to 97.0 % | ±5 digits | |
| Current indication | 0.0 A to 80.0 A | -- | Based on duty cycle[2] | |
| Frequency | 0.9000 kHz to 1.1000 kHz | 0.1% | ||
| CP state indication | A, B, C, D | -- | Based on voltage[1] | |
| x1, x2 | -- | Based on frequency[1] | ||
| CP state simulation | A | -- | -- | >900 kΩ ±0.2 % |
| B | -- | Upper level: 4610 Ω ±0.2 %[1] Nominal level: 2740 Ω ±0.2 %[1] Lower level: 1870 Ω ±0.2 %[1] |
||
| C | -- | Upper level: 1254.2 Ω ±0.2 %[1] Nominal level: 881.7 Ω ±0.2 %[1] Lower level: 611.7 Ω ±0.2 %[1] |
||
| D | -- | Upper level: 408.3 Ω ±0.2 %[1] Nominal level: 245.8 Ω ±0.2 %[1] Lower level: 130.2 Ω ±0.2 %[1] |
||
| Fault simulation | PE error (earth fault/PE open) |
Pass/Fail | -- | -- |
| CP error E | Pass/Fail | 0 Ω +2 Ω | -- | |
| Diode short | Pass/Fail | -- | -- | |
| Error D | Pass/Fail | -- | -- | |
| PP resistor measurement Type 1 with cable (S3, R6, R7) |
50.0 Ω to 499.9 Ω, 500 Ω to 5000 Ω |
±1.0 % | -- | |
| CP resistor measurement (R1) | 800 Ω to 1200 Ω | ±1.0 % | -- | |
| [1] According to IEC 61851-1. [2] According to table A.8 of IEC 61851-1. |
||||
| General specification | ||||
| Input elctrical ratings | 250 V max 50/60 Hz, max 1 A |
|||
| EV connector | SAE J1772 socket (type 1, 5P single-phase) | |||
| Internal power consumption | 3W max | |||
| Size (H x W x D) | ∼(263 mm x 123 mm x 63 mm) ∼(10.35 in x 4.84 in x 2.48 in) without the TY1 |
|||
| Weight | ∼0.9 kg, without the TY1 connector ∼1.4 kgn with the TY1 connector |
|||
| Battery | 4 x AA/IEC LR6 alkaline or IEC HR6 NiMH | |||
| Temperature | ||||
| Operating | -10 °C to 40 °C (14 °F to 104 °F) | |||
| Storage | -20 °C to 50 °C (-4 °F to 122 °F) | |||
| Relative humidity | ||||
| Operating | 10 % to 85 %, 0 °C to 40 °C (32 °F to 104 °F), non-condensing |
|||
| Storage | up to 95 % | |||
| Altitude | 3000 m | |||
| Ingress protection | IP40 | |||
| Wireless radio, Bluetooth 5.0 | ||||
| Frequency range | 2400 MHz to 2483.5 MHz | |||
| Output power | <100 mW | |||
| Safety | IEC 61010-1: Pollution Degree 2, IEC 61010-2-030, CAT II 300 V, Protection Class II | |||
