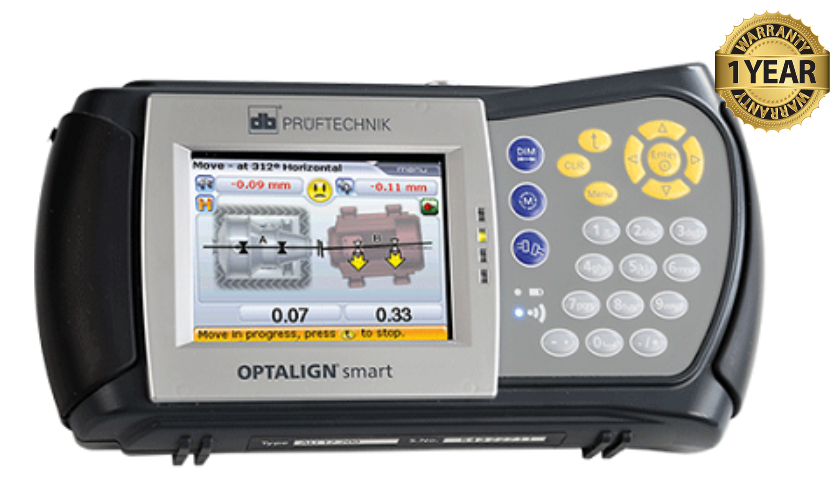

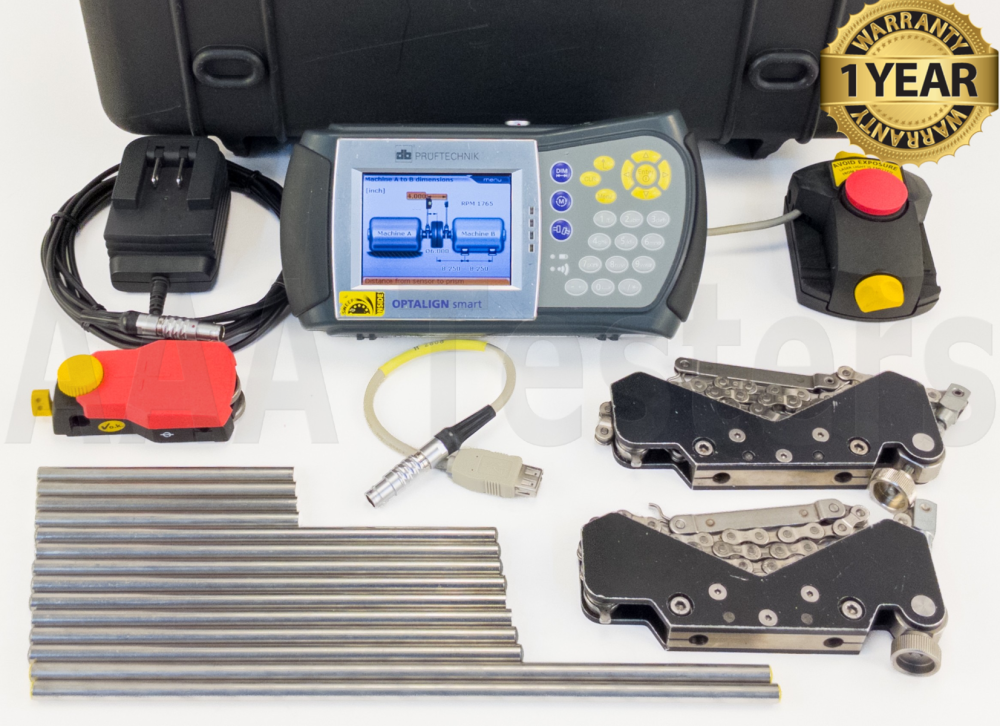

Pruftechnik OptAlign Smart Laser Shaft Alignment System

Pruftechnik Optalign Smart Laser Shaft Alignment System

The high measurement accuracy attained through the automatic and continuous acquisition of measurement data during shaft rotation and its straightforward and intuitive operation, transform OPTALIGN® smart to an incomparable high performance and dynamic precision laser alignment measurement instrument. With OPTALIGN® smart, the alignment of rotating machinery has never been simpler and convenient.

The single laser beam technology UniBeam® ensures rapid precision alignment.

The patented UniBeam® feature guarantees that laser set-up and beam adjustment in all laser units from PRÜFTECHNIK Alignment Systems, is quick and straightforward, even for cases affected with extreme angularity. An additional advantage of UniBeam® is the use of a single laser detector and cable. Wireless data transmission is possible via the RF module.

InfiniRange® extends the effective measurement range significantly.

Alignment procedures are dependent on the application. The alignment of machines with gross misalignment – in particular angularity – or those that are distant from each other, can be handled using InfiniRange®, a precision alignment capability from PRÜFTECHNIK Alignment Systems. This function extends the detector surface mathematically, making it possible to measure machines with severe misalignment or distant from each other without loss in accuracy of alignment results. Rough alignment is not necessary, and the initial alignment condition is recorded.

Features:

• Single Laser Technology (UniBeam)
• Intuitive user guidance - 3-Key alignment (define machines, automatic measurement, analyze alignment results)
• Continuous sweep measurement mode - for automatic and continuous acquisition of data as shafts are rotated.
• Dynamic tolerance( TolChek) - Automatic and active evaluation of the alignment condition through the smiley and system LEDs
• Live Move - Live on-screen monitoring of the alignment correction
• Soft foot – Check, correct and record soft foot in the measurement report
• Data protection and printing reports – Measurement files are saved within the system and as PDF reports directly to a memory stick. Reports can be printed in both graphic and text formats. In case of power interruption, the current file is saved automatically.
