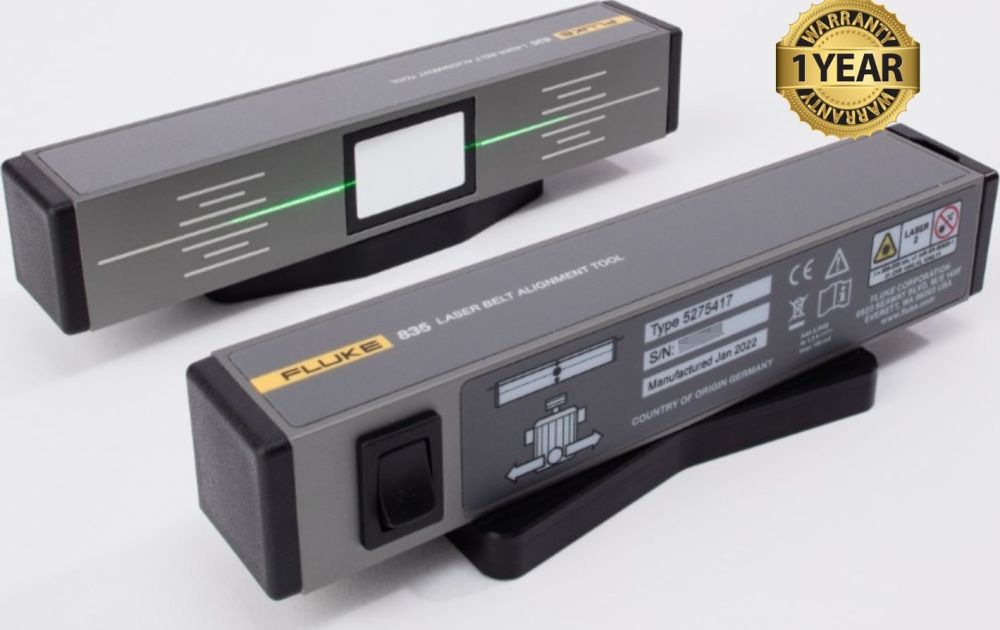

Fluke 835 Laser Belt Alignment Tool
Condition: Refurbished/Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Fluke 835 Laser Belt Alignment Tool (BC# -L/T*)
- Fluke 835 Reflector (BC# -L/T*)
- Carrying Case
Fluke 835 Laser Belt Alignment Tool
The Fluke 835 Laser Belt Alignment Tool is the ideal tool to precision-align belt-driven machines in your facility.
Get more from your belt-driven systems through proper machine alignment. Misalignment can take years off your machinery’s useful lifespan — and lead to time and money spent on unnecessary repairs and replacements, as well as costly unplanned downtime.
Efficient and accurate pulley alignment
The Fluke 835 Laser Belt Alignment Tool provides fast, easy, and accurate pulley alignments to help keep your plant up and running. In just a few steps, you can precisely align all of the belt-driven machines in your plant.
With the Fluke 835, a single operator can quickly and easily achieve precision alignment for all your standard belt-driven machines whose alignment has never been prioritized. The benefits of precision alignment include longer-lasting parts, such as bearings, belts, and seals, as well as savings from reduced production loss and energy waste."
Specifications:
| Fluke 835 Laser Belt Alignment Tool | |
| Accuracy | 0.2˚ |
| Laser wavelength | 505 - 535 nm (green – more visible) |
| Output power | < 1.0 mW |
| Classification class | 2 |
| Measuring distance | 10 m between units |
| Laser line length | 7 m at 5 m distance |
| Controls | Laser ON/OFF rocker switch |
| Battery type | 4 AAA alkaline batteries |
| Operating time | 6 hours |
| Operating temp | -5˚C to 40˚C |
| Storage temp | -10˚C to 70˚C |
| Mounting method | Strong magnets |
| Weight | 0.3 kg |
| Dimensions | 37 x 40 x 170 mm |
| Housing | Gray anodized aluminum |
| Fluke 835 Reflector | |
| Accuracy | 0.2˚ |
| Reflector size | 21 x 32 mm |
| Mounting method | Strong magnets |
| Weight | 0.27 kg |
| Dimensions | 37 x 40 x 170 mm |
| Housing | Gray anodized aluminum |
