Fluke TV33 60Hz Stand-Alone Thermoview Thermal Imager 320 x 240

Fluke TV33 60Hz Stand-Alone Thermoview Thermal Imager 320 x 240

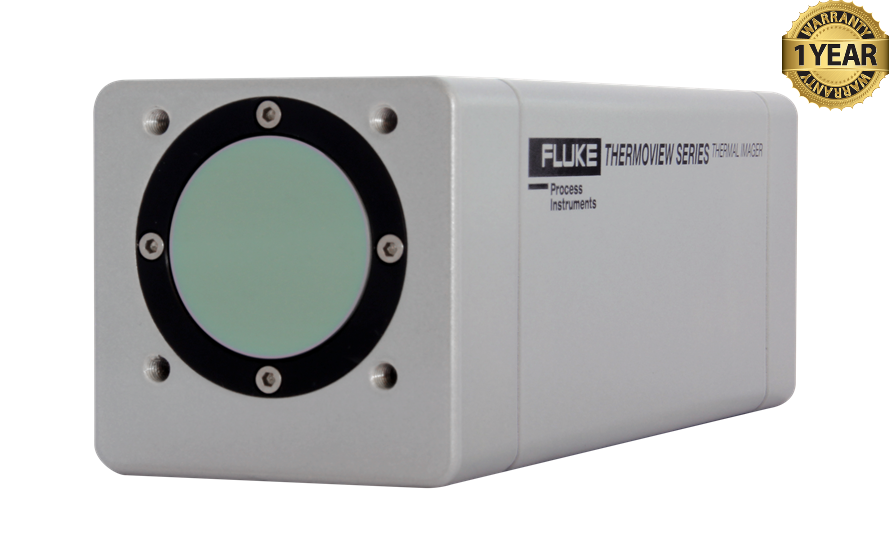

The Fluke ThermoView TV33 60 Hz Stand-Alone Thermal Imager is a fixed industrial infrared camera designed for continuous temperature monitoring. Part of Fluke Process Instruments’ TV30 series, it helps manufacturers observe equipment and production processes, detect abnormal heating, and support quality inspections. Its 320 × 240-pixel sensor produces thermal images containing 76,800 pixels.

The TV33 detects infrared radiation from surfaces and converts it into temperature information and thermal images. It measures temperatures from −10°C to 1,300°C (14°F to 2,372°F). The 60 Hz version updates its thermal image 60 times per second, helping users observe moving products and temperature changes during production. Available lens options and motorized focusing help adapt the camera to different viewing distances and inspection areas.

Its stand-alone design allows temperature analysis and monitoring to run within the camera without a dedicated computer continuously connected. Users access live images and configure monitoring through a web browser. They can define multiple areas of interest, assign temperature limits, and set alerts for abnormal conditions, allowing different parts of a process to be monitored independently within the same image.

The TV33 can also connect to industrial monitoring and control systems. It supports MQTT and OPC UA, includes three onboard inputs and three outputs, and interfaces with additional remote input/output modules. These connections allow temperature information and alarms to support automated process monitoring, product quality checks, and equipment protection.

Built for industrial environments, the camera has an IP67-rated housing and specified resistance to mechanical shock and vibration. It operates from a 24 V DC supply or compatible Power over Ethernet, simplifying installation where network infrastructure is available. Its compact construction and remote access make it suitable for permanent monitoring positions where operators need ongoing temperature information without routinely approaching the equipment.

Features:

• 320 × 240 infrared resolution 76,800 pixels.
• 60 Hz frame rate updates thermal images 60 times per second.
• Temperature measurement from −10°C to 1,300°C (14°F to 2,372°F).
• Stand-alone operation with onboard temperature analysis.
• Web-browser access for live viewing and remote configuration.
• Multiple areas of interest with individual monitoring limits and alerts.
• Motorized remote focusing.
• Standard, wide-angle, or telephoto lens options, depending on the model ordered.
• Adjustable emissivity from 0.10 to 1.00.
• MQTT and OPC UA support for industrial system integration.
• Three onboard inputs and three outputs, with support for additional remote I/O.
• 24 V DC or Power over Ethernet operation.
• IP67-rated housing for dust and water protection.
• Shock and vibration resistance for industrial installations.
• Status LEDs for power indication and system error codes.
