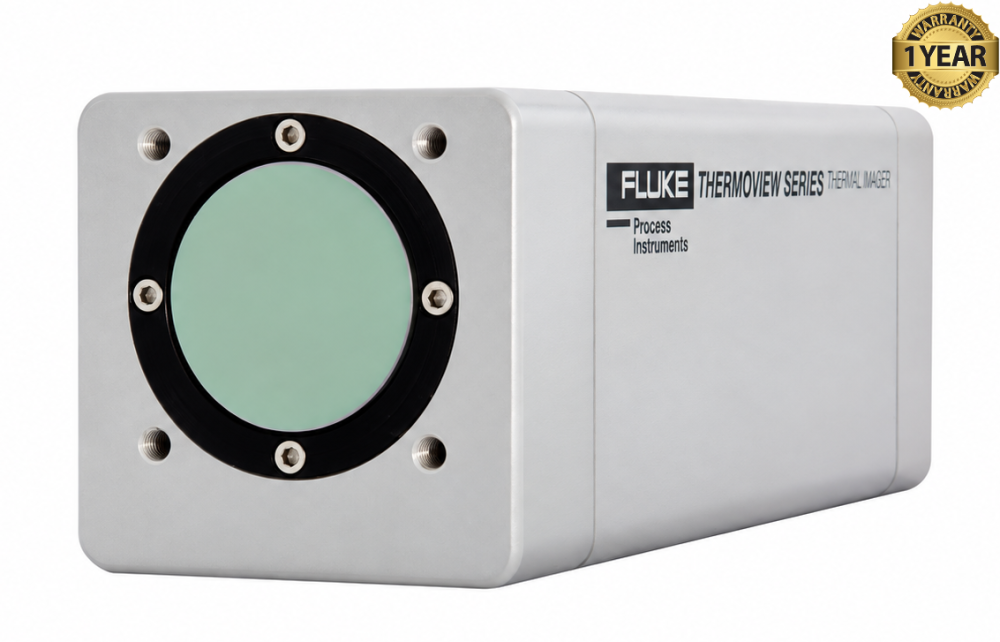

Fluke TV33 9Hz Stand-Alone Thermoview Thermal Imager 320 x 240
Condition: Refurbished
Warranty: 1 Year Warranty
Shipping: USA Only
- Fluke TV33 9Hz Stand-Alone Thermoview Thermal Imager 320 x 240 (BC# -L/T*)
Fluke TV33 9Hz Stand-Alone Thermoview Thermal Imager 320 x 240
The Fluke TV33 9 Hz Stand-Alone ThermoView Thermal Imager is a fixed industrial infrared camera used to continuously monitor temperatures. Part of the ThermoView TV30 series, it helps operators detect hot spots, temperature inconsistencies, and process changes without contacting the measured surface.
Its 320 × 240-pixel infrared detector produces thermal images containing 76,800 measurement pixels. The 9 Hz frame rate updates the image nine times per second, allowing users to observe temperature changes across equipment or products. Its specified measurement range extends from −10°C to 1,300°C.
The stand-alone design performs monitoring and analysis within the camera, allowing operation without a dedicated computer continuously running beside it. A built-in web interface provides access to live images and configuration settings, helping users set up and review measurements remotely.
Users can define areas of interest and assign temperature limits and alerts to individual regions. Integrated inputs and outputs, along with industrial communication protocols such as MQTT and OPC UA, help connect the camera to automation systems for process monitoring and quality checks.
An IP67-rated housing protects the imager against dust and water ingress. Motorized focusing and standard, wide-angle, or telephoto lens configurations accommodate different installations. Powered by 24 V DC or Power over Ethernet, the TV33 supports continuous industrial temperature monitoring and helps teams identify conditions requiring attention.
Features:
- 320 × 240 infrared resolution—76,800 pixels
- 9 Hz image refresh rate—nine frames per second
- Temperature measurement range of −10°C to 1,300°C
- Stand-alone operation with onboard processing and analysis
- Built-in web interface for viewing images and configuring settings
- Multiple areas of interest with individual monitoring limits and alerts
- Three onboard inputs and three outputs, plus support for additional remote I/O
- MQTT and OPC UA communication for industrial automation integration
- Motorized remote focus
- Standard, wide-angle, and telephoto lens configurations
- Adjustable emissivity from 0.10 to 1.00
- IP67-rated housing
- 24 V DC or Power over Ethernet
- Compact dimensions of approximately 50 × 50 × 142 mm
- Operating ambient temperature of −10°C to +50°C
| Specification | Fluke TV33 Stand-Alone, 9 Hz |
|---|---|
| Manufacturer | Fluke Process Instruments |
| Product series | ThermoView TV30 |
| Camera type | Fixed industrial thermal imager |
| Infrared resolution | 320 × 240 pixels |
| Frame rate | 9 Hz |
| Temperature measurement range | −10°C to 1,300°C / 14°F to 2,372°F |
| Measurement accuracy | Down to ±2°C or ±2% of reading |
| Spectral range | 8–14 µm |
| Detector | Uncooled focal plane array |
| Focus | Motorized |
| Standard lens field of view | 30° × 22° |
| Wide-angle lens field of view | 48° × 36° |
| Telephoto lens field of view | 22° × 16° |
| Minimum focus distance | Standard: 220 mm; wide-angle: 100 mm; telephoto: 190 mm |
| Emissivity adjustment | 0.10–1.00 |
| Software interface | Built-in web interface |
| Communication protocols | MQTT, OPC UA, DHCP, mDNS |
| Onboard inputs/outputs | 3 inputs; 3 outputs |
| External I/O | Supports additional remote I/O |
| Power supply | 24 V DC ±20% or PoE, IEEE 802.3at |
| Environmental protection | IP67 |
| Operating temperature | −10°C to +50°C |
| Storage temperature | −20°C to +70°C |
| Humidity | 10–95%, non-condensing |
