Leica DS4000 Dual Frequency Ground Penetrating Radar w/ CT1500 Controller

Leica DS4000 Dual Frequency Ground Penetrating Radar w/ CT1500 Controller

Leica DS2000 Dual Frequency Ground Penetrating Radar w/ CT2000 Controller

$18,499.00
Availability: In stock
SKU
1B52

Condition: Refurbished / Calibrated

Warranty: 1 Year Warranty

Shipping: USA & Worldwide

  • Leica DS2000 Ground Penetrating Radar [ID-L/T*]
  • CT2000 Field Tablet Controller [ID-L/T*]
  • Ethernet Cable
  • Battery Charger
Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

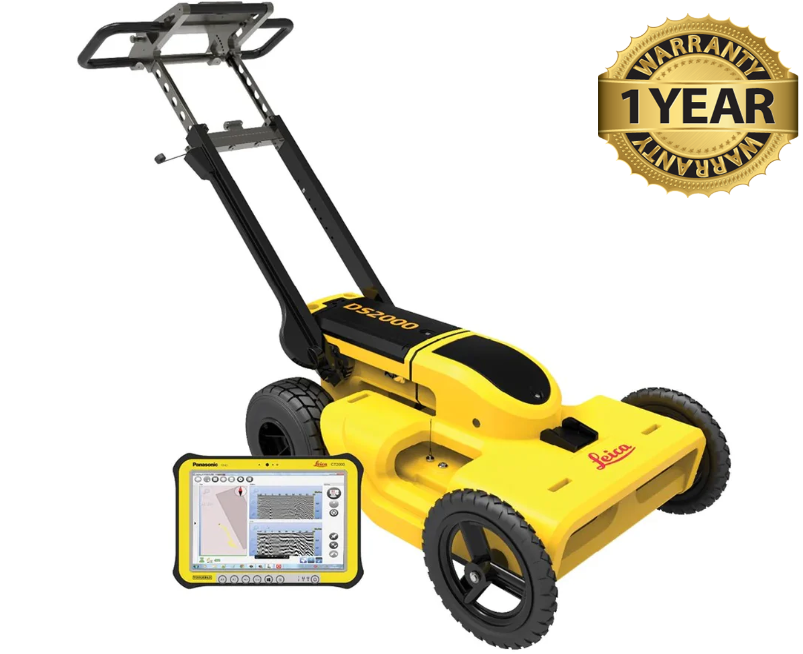

Leica DS2000 Dual Frequency Ground Penetrating Radar

The Leica DS2000 Utility Detection Radar finds all potential threats, including non-conductive pipes and fiber optics, increasing safety by lowering the risk of accidently hitting underground assets. Increase safety, speed up work and lower asset management costs with the ability to prevent hazardous outages and collect more information. The DS2000 enhances your business by making it safer, faster and more efficient.

Features

  • Increase safety when the DS2000 identifies all potential threats
  • Get to assets and recover quicker from outages when you know exactly where underground utility assets are located
  • Dual-frequency antenna to detect deep and shallow targets simultaneously
  • Easily collect and understand data with the DS2000’s simple and intuitive software and data storage
  • Effortlessly maneuver around the most challenging sites with the DS2000’s advanced ergonomics
  • Without GPS, map onsite with no post processing needed when data is stored on the tablet





DS2000 Specifications
Antenna footprint 40 x 50 cm
Hardware channels 2
Antenna central frequencies 250 MHz and 700 MHz
Antenna orientation Perpendicular, broadside
Sampling Frequency 400 kHz
Acquisition speed More than 10 km/h
Scan rate per channel for 512 samples per scan 381 scans per second
Scan interval  42 scan per metre
Positioning  2 integrated encoders - GPS and/or TPS
Crosshair Digital, superimposed
Tracklight built in Red / Green Status LEDs
Tracklight Range 100 m (328 ft)
Operating temperature –20 ºC to +50 ºC (–4 ºF to +122 ºF)
Dust and water proofing IP55
Internal battery Li-Ion, 11.1 V / 5.0 Ah or 10.8 V / 6.5Ah
Operating Time Approx. 6-8 hours
Weight 4.7 kg (10.3 lb)
