3M Dynatel 7573XU Cable/Pipe/Marker Locator
Condition: Refurbished/Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- 3M Dynatel 7573XU Cable/Pipe/Marker Locator (BC# -L/T*)

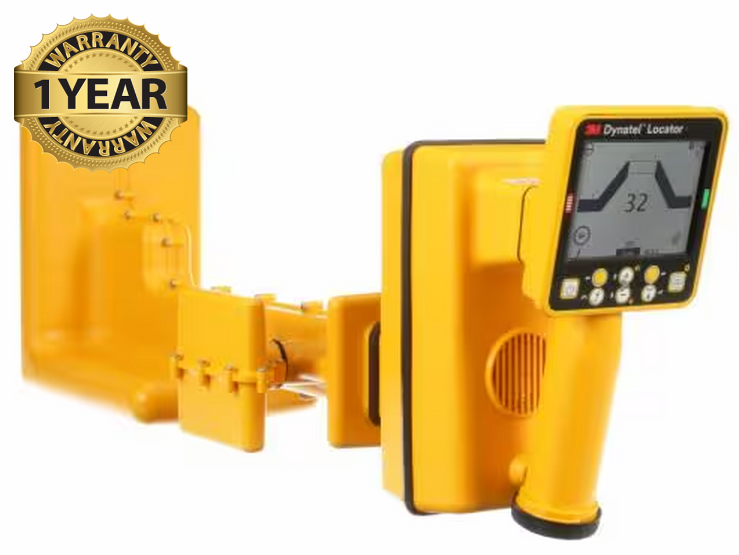

3M Dynatel 7573XU Cable/Pipe/Marker Locator
3M Dynatel Locators 7550XE/7573XE Series integrated to include locating cable/pipe/fault, locating EMS markers and 3M EMS Path Marking Tape, read/write to 3M ID Markers for the field professional. It features a lightweight design for excellent balance and ergonomics, large display with easy-to use interface and enhanced connectivity. Li-Ion battery with built-in charger. Internal GPS module.
3M Dynatel 7550XE/7573XE Locator is capable of locating cable, pipe and all models of passive markers that are properly installed. It detects industry standard electronic marker, EMS path marking tape frequencies. This locator has simplified integrated interfaces with precision locating capabilities, six active frequencies for direct connect and trace view mapping display mode. A GPS communication system is incorporated into this Dynatel locator to provide GIS mapping.
Specifications:
| Physical Specifications | |
| Size | |
| Receiver | 25.5" H x 3.75" W x 10.75" D (64.8 cm x 9.5 cm x 27.3 cm) |
| Weight | |
| Receiver | 4.1 lbs. (1.8 kg) |
| Environmental Specifications | |
| Operating temperature | 4° to 122°F (-20° to 50°C) |
| Storage temperature | -40° to 158°F (-40° to 70°C) |
| Receiver | |
| Cable/Pipe Depth Accuracy | ±2% ± 3 inch (7.6 cm) for 0–60 inch (0 - 1.5 m) ±6% ± 3 inch (7.6 cm) for 60–120 inch (1.5–3.0 m) ±10% ± 3 inch (7.6 cm) for 120–180 inch (3.0 m–4.5 m) |
| Cable/Pipe Depth Range | 0–360 in. (0–914 cm) |
| Locate Modes | Trace View, Directional Peak, Directional Null (Provides 360° locate), Special Peak, Dual Peak |
| GPS Mapping | GPS Interface (internal, 3 m) CEP50 (Autonomous Position Accuracy) External GPS Devices-Defer to Published Specifications of Device |
| Connectivity | Bluetooth® wireless technology - Dual-mode Bluetooth 5.0. Profiles support GAP, GATT, SPP. Bluetooth 5.0 wireless module at 2.4 GHz. USB port is compatible with USB Type-C® Connector. |
| Gain Control | Manual and Automatic |
| Marker Depth Accuracy | ± 10% ± 2 inch (5 cm) up to specified depth of marker |
| Power | Rechargeable Battery Pack (Alkaline 8xAA size battery pack for backup) |
| Typical battery life | 8 hours |
