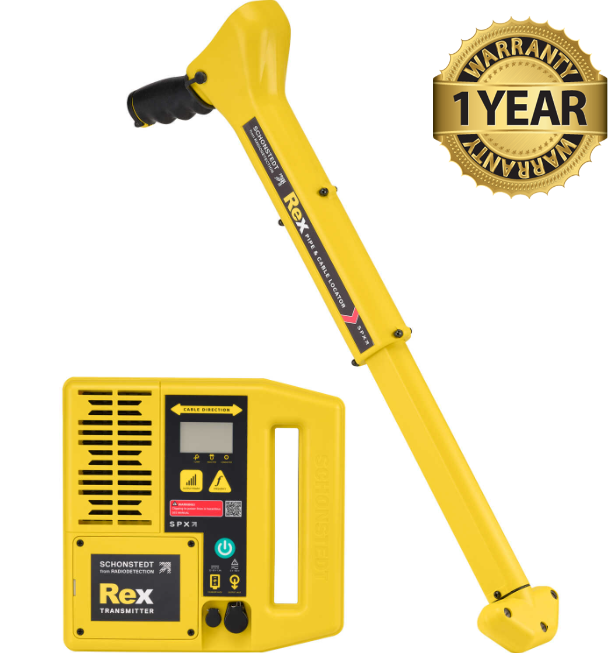

Schonstedt Rex Cable & Pipe Locator Kit
$2,769.00
Availability:
In stock
SKU
1B54
Condition: Refurbished/Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Schonstedt Rex Cable and Pipe Locator Receiver(BC# - L/T*)
- Schonstedt Rex Transmitter (BC# - L/T*)
- Direct Connect Leads
- Ground Stake
Request a Quote for
Schonstedt Rex Cable & Pipe Locator Kit
Features:
- Ultralight Design: Receiver + Transmitter = Under 7lbs
- Compact & Portable: Receiver retracts for easy carrying
- Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz passive and 512 Hz sonde detection
- Transmitter comes equipped with rechargeable batteries
The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs. At slightly over 7 lbs., the entire system fits easily into a custom shoulder bag. A new slim and ultralight transmitter was designed specifically for Rex. Its thin and sleek profile combines with a retractable receiver to make Rex the most user-friendly and portable pipe & cable locator on the market. And best of all, Rex is a multi-frequency locator with a price tag comparable to single-frequency locators.
Receiver Specifications
| Operating Frequency: | Active: 512 Hz, 33 kHz and 82 kHz; Passive: 50 or 60 Hz; Sonde: 512 Hz |
| Battery | One 9V Battery |
| Battery Life | 12 Hours (intermittent usage) |
| Weight (incl. battery) | 2.8 lbs (1.25 kg) |
| Operating Temperature | -4°F to 140°F (-20°C to 70°C) |
| Overall Dimensions | Closed: 17.5” (44 cm); Extended: 27.7” (70 cm) |
| Max. Depth Capability | Approximately 19’ (5.8 m) Sonde mode - approximately 5’ - 15’ (1.5 m to 4.2 m) |
| Water and Dust Resistance | Rated IP54 |
Transmitter Specifications
| Operating Frequency: | 512 Hz, 33 kHz and 82 kHz |
| Operating Modes | Conductive, Inductive, and Inductive Clamp |
| Max. Output Power (Conuctive Mode @ 1000 Ω load) |
512 Hz and 33 kHz: 1/2, 1, 2 or 5 W 82 kHz: 1/2 or 1 W |
| Battery Type | Rechargeable NiMH pack (12V) |
| Battery Life | 8 Hours (intermittent usage) |
| Charging | Internal Smart Charger powered by AC/DC power adapter |
| Dimensions | 10”W x 10.25”D x 1.75” H (25.4 cm x 26 cm x 4.5 cm) |
| Weight | 3.5 lbs (1.6 kg) |
| Operating Temp. | -4°F to 140°F (-20°C to 70°C) |
| Water and Dust Resistance | Rated IP54 |
