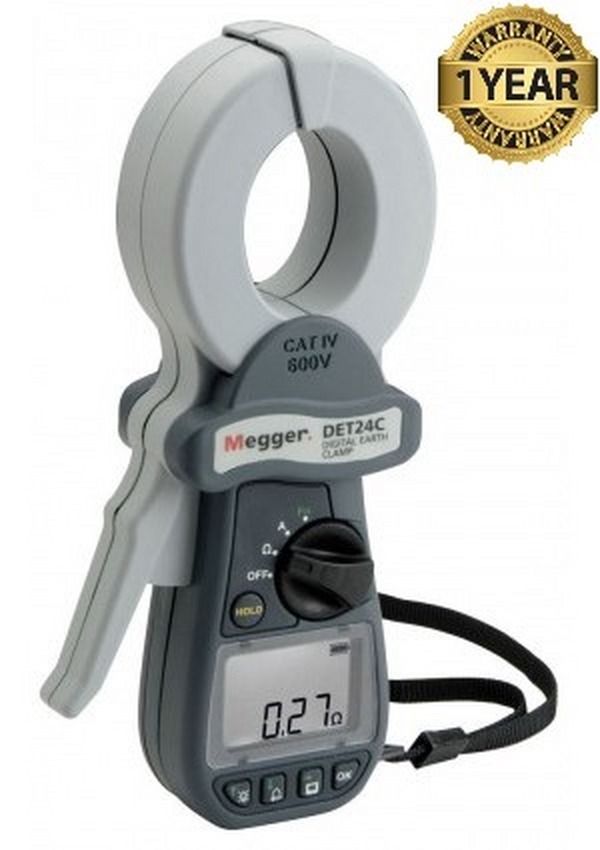

Megger DET24C Earth/Ground Clamp-On Resistance Tester
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Megger DET24C Earth/Ground Clamp-On Resistance Tester (BC# -L/T*)
Megger DET24C Earth/Ground Clamp-On Resistance Tester
The Megger DET24C ground resistance clamp tester represents a new generation of earth/ground clamp-on resistance testers. These instruments induce a test current into earth systems and measure ground resistance in multi ground installations without needing to disconnect the ground. It offers market-leading access, advanced features, simple operation and CAT IV 600 V safety protection.
The elliptical-shaped head design offers improved access to cables and earth straps in space-constrained locations. The clamp head accommodates up to 37 mm diameter cable and 50 mm earth tapes making them suitable for use in power stations, substations, towers and many more facilities.
- Balance elements of ground to mitigate noise
- Balance ground circuits
- Measure continuity of ground circuits in headends and hubs
Features
- Elliptical clamp shape improves access to earth cables and straps up to 50 mm
- Low maintenance flat jaw interface
- Measures ground resistance from 0.05 Ω to 1500 Ω
- Measures true RMS ground leakage current from 0.5 mA rms to 35 A rms
- CAT IV 600 V safety rating
- Backlit LCD display
| SPECIFICATIONS | |
| Maximum Current | 100A continuous 200A for 20s max |
| Max Conductor Size | 37mm OD - 50mm tape |
| Max. Inner Jaw Dimensions | 39mm x 55mm |
| Current Range Summary | 0.5mA to 35.00A |
| Display | 4 + 6 digit with backlight |
| Battery type | 4 x 1.5 V IEC LR6/AA alkaline |
| Battery Life | 24 Hours cont. 25Ω load |
| Auto power down | 300 s (reset by jaw action or button press) |
| Data logging | DET14C 256 records DET24C 2 k records |
| Data download | Bluetooth interface |
| Range | Selection: Automatic within each mode |
| Sampling time | <1 s |
| Operating temperature range and humidity |
-20 °C to +50 °C, <85% RH |
| Storage temperature range and humidity | -40 °C to +60 °C, <75% RH |
| IP rating | IP30 |
| Safety | EN 61010-2-032 CATIV 600 V Pollution degree 2 |
