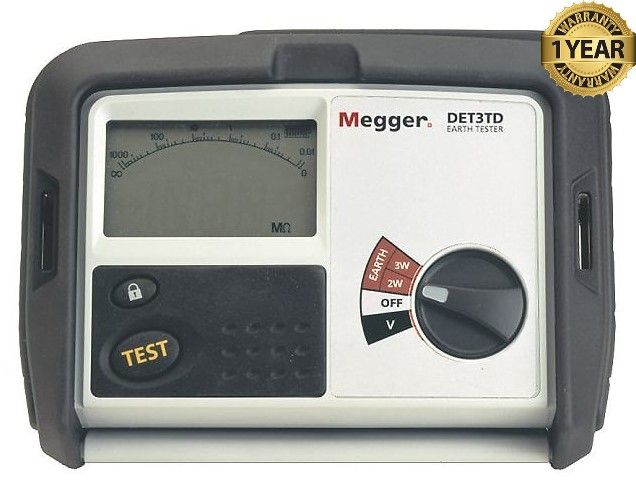

Megger DET3TD Digital Earth/Ground Resistance Tester
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Megger DET3TD Digital Earth/Ground Resistance Tester (BC# -L/T*)
Megger DET3TD Digital Earth/Ground Resistance Tester
The Megger DET3TD digital ground tester measures earth resistance from 0.01Ω through to 2000Ω and earth voltages up to 100 V. To allow accurate testing in noisy environments the instrument is capable of rejecting noise of up to 40 V peak to peak.
The DET3TD ground tester has been designed to be easy to use - a large selector switch makes selection of 2 and 3 pole tests easy with gloved hands. A large, clear, easy to read LCD display and thumb-sized test button again makes the instrument particularly suited to the outdoor conditions of ground testing.
In addition to this ease of use, the DET3TD ground tester also automatically checks the connection and condition of the P and C spike, indicating the status on the display. The instrument also includes a voltmeter to allow you to measure the ground voltage. The ground tester can measure resistance from 0.01 ohms through to 2000 ohms and earth voltages up to 100 V. To allow accurate testing in noisy environments the instrument is capable of rejecting noise of up to 40 V peak to peak.
The Megger DET3TD digital ground tester is powered by eight AA batteries which are widely available and also give excellent testing time - the status of these batteries is given by a bar graph on the LCD display allowing you to decide when to change the batteries, before they expire. The Megger DET3TD 3-Terminal Ground Resistance Tester is designed to meet stringent safety standards and is rated CAT IV 100 V.
Features
- 2 and 3 point testing
- ART (Attached Rod Technique) testing capability with DET3TC
- Choice of digital or analog display
- Warning indicators prevent test failure
- IP54 rated
- Complete with leads, stakes and rugged carry case
- Simple one button operation
| Specifications | |
| Resistance range | 0.01 to 2000 Ω auto-ranging |
| Resistance accuracy | 2P measurements 2% ±3 digits 3P measurements 2% ±3 digits ART measurements 5% ±3 digits |
| Maximum probe resistance | Rp limit: 100kΩ (50V output voltage) Rc limit: 100kΩ (50V output voltage) Limits reduced to 50kΩ for 25V output voltage Limits reduced to 5kΩ for 0.01 Ω resolution on 18 Ω range |
| Earth voltage range: | 0 – 100 V |
| Earth voltage accuracy | 2% ±2 V |
| Ground current range (with current measuring clamp) | 0.5 mA to 19.9 A |
| Ground current accuracy | 5% ±3 digits |
| Display | LCD |
| Test frequency | 128 Hz |
| Test voltage | 25 V or 50 V, user selectable (factory setting 50 V) |
| Test current | 450 mA or 4.5 mA |
| Noise rejection | 40V pk to pk |
| Battery type | 8 1.5 V AA cells |
| Battery life | 3 hours, 700 consecutive tests |
| Safety | EN61010-1 CAT IV 100 V |
| Terminals | 4 mm plug type (test leads) |
| Ingress protection | IP54 |
| EMC | Meets the requirements of EN61326-1:1998 for use in heavy industrial areas |
| Operating temperature range | -5º to +131º F (-15º to +55º C) |
| Storage temperature range | -40º to +158º F (-40º to +70º C) |
| Humidity | 95% RH non-condensing at 104º F (40º C) |
