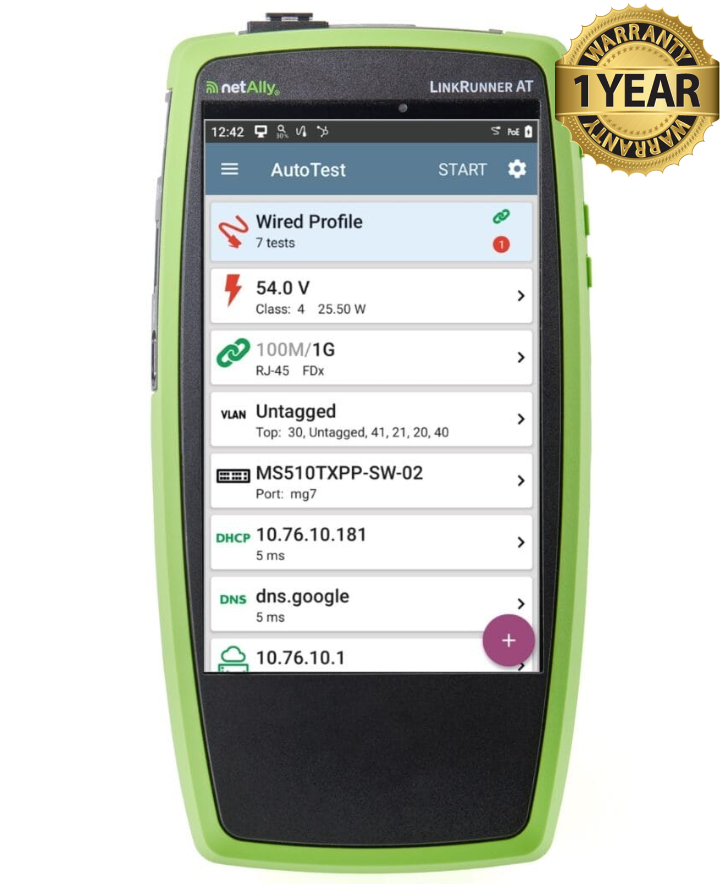

NetAlly Linkrunner AT 4000 Network & Cable Connectivity Tester
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Netally LinkRunner AT4000
- Ethernet Cable(2)
- USB PC Interface Cable
- Wireview Cable ID #1
- Carrying Case (G)
NetAlly Linkrunner AT 4000 Network & Cable Connectivity Tester
The LinkRunner AT 4000 is an advanced cable and network tester for Multigigabit NBASE-T and fiber Ethernet networks, including comprehensive network discovery and topology mapping with advanced diagnostics and problem detection for in-depth troubleshooting.
Using network discovery and layer 2 and 3 path analysis, the LinkRunner AT 4000 offers comprehensive network visibility to help resolve issues impacting multiple devices – not just a single link – while still providing the automated tests for moves/adds/changes validation and troubleshooting that the LinkRunner AT family of test solutions is known for.
Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management. Independent management plane via wired or Wi-Fi connection (with optional adapters) allows remote operation and result uploading separate from the network under test.
Features:
• Automatically discover and instantly generate a topology map of your networks using the Link-Live™ reporting and analysis platform.
• Comprehensive AutoTest validates and troubleshoots all aspects of network connectivity and services including DHCP and DNS, as well as response time of cloud and on-prem HTTP and FTP services.
• Verifies link speed/duplex for 10/100 Mbps and 1 Gbps, with detection of NBASE-T and Multigigabit 2.5G, 5G and 10 Gbps links.
• Discovers nearest connected switch name and port information via CDP/LLDP/EDP, including VLANs; monitors VLAN trunk traffic.
• Validates Power over Ethernet switching and cabling up to 90W 802.3bt with TruePower™ loading.
• Advanced twisted-pair cable tests for length, wiremap, and faults such as shorts, opens, mis-wires (split pairs, crossovers), fiber optic link signal strength power measurement and SFP diagnostics. Locate cable endpoints with optional WireView adapters.
• In-depth analysis tools like Path Analysis and line-rate packet capture help solve complex issues.
• Automate reporting/documentation and enable collaboration with test result uploads, management, and tester remote control via Link-Live™
Specifications:
| Dimensions |
4.02 in x 7.72 in x 1.65 in (10.2 cm x 19.6 cm x 4.2 cm) |
| Weight | 1.06 lbs (0.48 kg) |
| Battery | Rechargeable lithium-ion battery pack (3.63 V, 9.75 Ah, 36.39 Wh) |
| Battery life | Typical run duration: 8 hours Typical charge time: 5 hours (when unit is off) |
| Display | 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels |
| Host interfaces | RJ-45 and SFP test port RJ-45 Cable test port (1) USB Type-A Port (1) USB Type-C On-the-Go Port |
| Memory | Approximately 8 GB available for storing test results and user applications |
| Battery Charging | USB Type-C 65-W adapter: AC Input Power 100-240 V, 50-60 Hz; DC Output Power 15 V (3 A) |
| PoE Battery Charging | 802.3 af/at/bt |
| Supported IEEE Standards |
Wired: 802.3/ab/i/u/z, 1000BASE-T PoE: 802.3af/at/bt Class 0-8, and UPOE Fiber: 1000BASE-X, SFP SX/LX/ZX |
