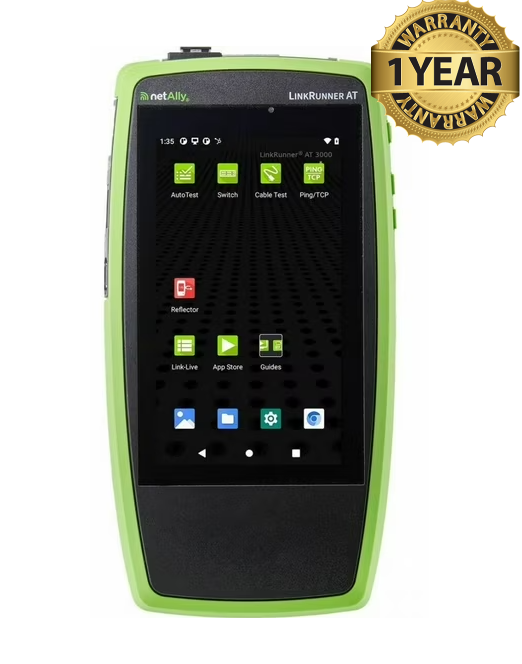

NetAlly Linkrunner AT 3000 Network & Cable Connectivity Tester
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Netally LinkRunner AT3000
- Ethernet Cable(2)
- USB PC Interface Cable
- Wireview Cable ID #1
- Carrying Case (G)
NetAlly Linkrunner AT 3000 Network & Cable Connectivity Tester
The LinkRunner AT3000 is designed for frontline technicians who need fast and comprehensive validation of copper and fiber network links with powerful network connectivity troubleshooting. While offering the same core functions of its predecessors (LinkRunner 1000 and LinkRunner 2000 models), the LinkRunner AT 1500 and 3000 feature a large touchscreen and in-depth AutoTest that provides deeper network visibility.
With tools designed to help with network changes and troubleshooting, these network testers’ quick cable test and switch identification functionality facilitates installation validation and fast problem isolation.
Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management. Independent management plane via wired or Wi-Fi connection (with optional adapter) allows remote operation and result uploading independent of the network under test.
Features:
- Fiber Optic Support
- VLAN Trunk Port Monitor
- Ping/TCP Test
- LANBERT Test
- Performance Test Reflector
- DHCP, DNS, & Gateway Test
- Cable Test
- Tone Generator
- PoE
Specifications:
| Dimensions |
4.02 in x 7.72 in x 1.65 in (10.2 cm x 19.6 cm x 4.2 cm) |
| Weight | 1.06 lbs (0.48 kg) |
| Battery | Rechargeable lithium-ion battery pack (3.63 V, 9.75 Ah, 36.39 Wh) |
| Battery life | Typical run duration: 8 hours Typical charge time: 5 hours (when unit is off) |
| Display | 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels) |
| Host interfaces | RJ-45 test Port RJ-45 Wire Map Port SFP Test port (LRAT-3000 Only) (1) USB Type-A Port (1) USB Type-C On-the-Go Port |
| Memory | Approximately 8 GB available for storing test results and user applications |
| Supported IEEE Standards |
Wired: 802.3/ab/i/u/z, 1000BASE-T PoE: 802.3af/at/bt Class 0-8, and UPOE Fiber: 1000BASE-X, SFP SX/LX/ZX (LRAT-3000 Only) |
| Charging |
USB Type-C 65-W adapter: AC Input Power 100-240 V, 50-60 Hz; DC Output Power 15 V (3 A) |
