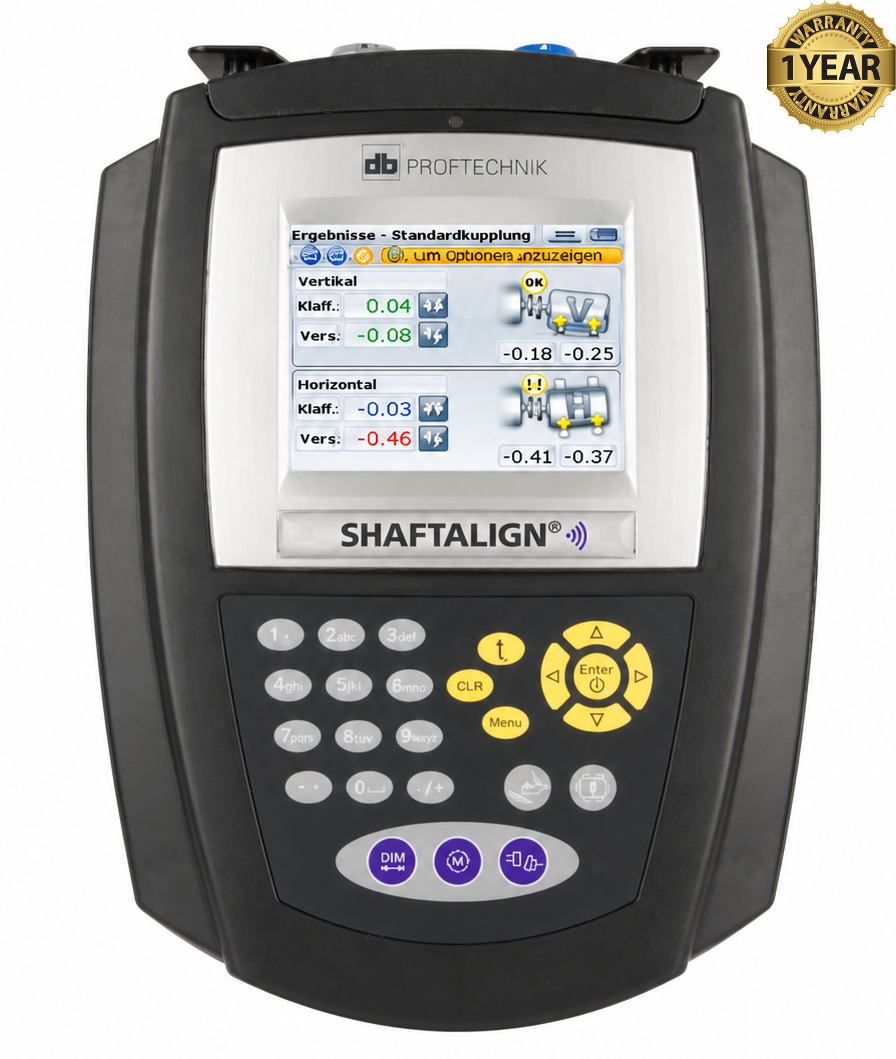

The PRUFTECHNIK SHAFTALIGN Laser Shaft Alignment Tool is a portable precision instrument used to align the shafts of connected rotating machines. Maintenance technicians use it on equipment such as motors, pumps, fans, gearboxes, and compressors to ensure the shaft centerlines line up correctly.

The system uses a laser sensor and reflector mounted on the shafts or couplings. Measurements taken at different rotational positions reveal offset misalignment, where the shaft centerlines are displaced, and angular misalignment, where they sit at different angles. The handheld computer processes these readings and displays the alignment condition.

SHAFTALIGN calculates the adjustments needed at the machine feet, helping technicians determine how far to move the machine sideways or how much shim material to add or remove. Features such as Live Move provide feedback during adjustments, while the soft foot check helps identify uneven support beneath the machine. Available functions depend on the SHAFTALIGN model and configuration.

Proper shaft alignment helps reduce vibration, bearing and seal wear, coupling damage, and unnecessary energy consumption. Used during installation, repairs, and routine maintenance, SHAFTALIGN helps improve equipment reliability and reduce unplanned downtime. Saved measurements and alignment reports also provide records for future maintenance work.

Features:

• Single-laser technology — simplifies setup and precise shaft alignment.
• Angular and offset measurement — identifies tilted and displaced shaft centerlines.
• Guided measurement workflow — leads users through setup, measurement, and results.
• Active Clock measurement — accounts for the sensor’s rotational position.
• Live Move guidance — displays alignment changes during machine adjustments.
• Soft foot check — identifies uneven support beneath machine feet.
• Tolerance evaluation — indicates whether alignment meets acceptable limits.
• InfiniRange technology — extends measurement capability for large misalignment.
• Color display — shows alignment readings and machine graphics.
• Internal storage — saves measurements for later review.
• PDF reporting — exports alignment reports to a USB memory stick.
• Portable design — suitable for maintenance work across multiple machines.
• Bluetooth communication — available with the appropriate wireless configuration.
