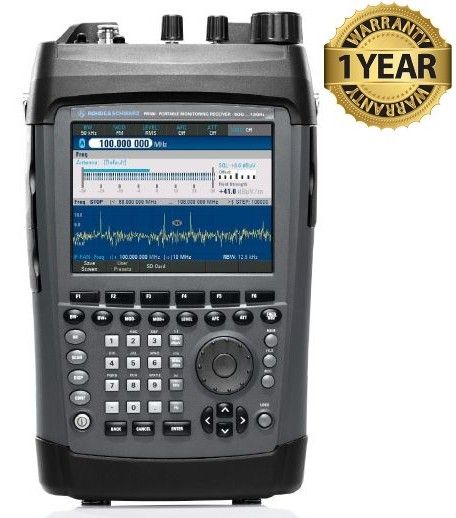

Rohde & Schwarz PR100 9 kHz - 7.5 GHz Monitoring Receiver
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Rohde & Schwarz PR100 Monitoring Receiver (BC# -L/T*)
- AC Adapter
- Power Cord
- Carrying Case (G)
Rohde & Schwarz PR100 Monitoring Receiver
The R&S PR100 operates in a wide frequency range from 9 kHz to 7.5 GHz. Whether used for monitoring emissions, detecting interference or locating miniature transmitters, the receiver always combines high mobility with maximum operating ease. The receiver and the R&S HE300 active directional antenna together form a compact receiving system. The receiver can also be used in conjunction with other antennas, e.g. broadband omnidirectional antennas.
Despite its compact design, the R&S PR100 offers a wide range of functions otherwise available only in equipment in higher price segments. Its favorable price/performance ratio makes it an indispensable instrument for all radio monitoring tasks where high mobility and cost efficiency are crucial.
Featuring compact size and low weight, the R&S PR100 is ideal for use in places that cannot be accessed with a vehicle. Its low power consumption allows the receiver to operate for up to four hours on a single battery charge. The lithium-ion battery can be exchanged in a matter of seconds without any tools. The current instrument settings are automatically written to the internal memory when the receiver is switched off.
Features :
- Fast panorama scan across the entire frequency range from 9 kHz to 7.5 GHz
- 10 MHz IF spectrum and demodulation with bandwidths from 150 Hz to 500 kHz
- Spectrum and spectrogram (waterfall) display on 6.5" color screen
- Storage of measurement data to receiver's built-in SD card
- LAN interface for remote control and data output
- Ergonomic and rugged design for portable use
- Low weight: 3.5 kg including battery
- Manual location of emissions with the R&S®HE300 active directional antenna (9 kHz to 7.5 GHz)
- Automatic location of emissions with direction finding algorithms (20 MHz to 6 GHz)
- Display of digital maps on the R&S®PR100; triangulation based on multiple, manually or automatically determined DF results
Specifications:
| Frequency range | 9 kHz to 7.5 Ghz |
| Impedance | 50 Ω |
| Preselection | 9 kHz to 30 MHz 30 MHz lowpass filter 20 MHz to 1.5 GHz tuned bandpass filters 1.5 GHz to 7.5 GHz highpass/lowpass filter combination |
| IF spectrum display range | 1 kHz to 10 MHz,1/2/5/10/20/50/100/200/500 kHz,1/2/5/10 MHz |
| Display modes | normal (clear/write), average, max. hold, min. hold |
| IF demodulation bandwidths | 15 filters (specified values indicate 3 dB bandwidth) 150/300/600 Hz,1.5/2.4/6/9/15/30/50/120/150/250/300/500 kHz |
| Demodulation modes | all demodulation bandwidths - AM, FM, PULSE, I/Q demodulation bandwidth - ≤ 9 kHz LSB demodulation bandwidth - ≤ 15 kHz ISB demodulation bandwidth - ≤ 9 kHz CW |
| Frequency scan (FScan) | start and stop frequency, step width - user-selectable scan speed - up to 200 channels/s |
| Memory scan (MScan) | memory locations - 1024, user-programmable scan speed - up to 150 channels/s |
| Panorama scan (PScan) | start and stop frequency - user-selectable resolution bandwidths (bin widths) - 125/250/500/625 Hz,1.25/2.5/3.125/6.25/12.5/25/50/100 kH |
| scan speed - up to 2 GHz/s (RBW = 100 kHz, measurement time = 500 µs, IF spectrum = normal, clear/write, display mode = IF spectrum) |
|
| DF Mode Frequency range | 20 MHz to 6 GHz |
| DF method | 20 MHz to 173 MHz - Watson-Watt 173 MHz to 6 GHz - correlative interferometer |
| Display resolution | 0.1° or 1°, selectable |
