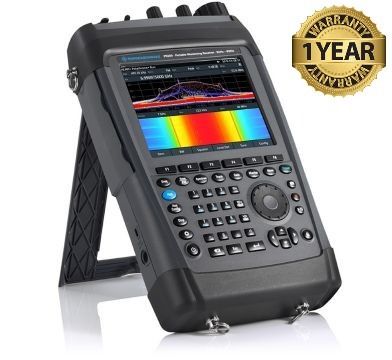

Rohde & Schwarz PR200 8 kHz to 8 GHz Monitoring Receiver
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Rohde & Schwarz PR200 Monitoring Receiver (BC# -L/T*)
- AC Adapter
- Power Cord
- Carrying Case (G)
Rohde & Schwarz PR200 Monitoring Receiver
The R&S PR200 portable monitoring receiver with up to 40 MHz real-time bandwidth covers the frequency range from 8 kHz to 8 GHz. This range can be extended up to 20 GHz with the R&S HE400DC handheld directional antenna and from 18 GHz to 33 GHz with the R&S HE800-DC30 handheld directional antenna both with an integrated downconverter. The R&S PR200 offers a perfect balance between RF performance, speed, usability and size, weight and power (SWaP) to handle typical tasks in every mobile spectrum monitoring, spectrum clearance, interference hunting and site testing mission in indoor and outdoor environments.
Apart from the polychrome spectrum display and fast spectral overviews with scan speeds of up to 60 GHz/s, the R&S PR200 features analog demodulation and versatile signal measurements, including level measurements, field strength measurements and ITU-compliant modulation parameter measurements. The R&S PR200 also provides time domain analysis with simultaneous signal representation in the frequency and time domains. The gated spectrum application can even uncover hard-to-detect interference signals by computing the real-time spectrum only within an adjustable time gate when matched to particular time slots in time division multiplexing networks.
For evaluation and analysis, the R&S PR200 offers comprehensive visualization modes, a wide range of markers and signal measurement functions, extensive mapping features, I/Q data streaming, a history mode, audio and trace recording as well as LAN remote control for later replay and documentation.
In addition to manual homing direction finding with R&S HE400 or R&S HE800 handheld directional antennas, the R&S PR200 equipped with compact R&S®ADDx07 DF antennas can be upgraded to perform highly accurate angle of arrival (AoA) based direction finding from 20 MHz to 6 GHz. The high timestamp accuracy thanks to the internal GNSS module enables operation in a network of multiple receivers to perform precise time difference of arrival (TDOA) radiolocation.
The R&S PR200 has an innovative application based user interface to quickly switch between measurement tasks, enabling signals of interest to be detected, analyzed and located in the shortest possible time. Thanks to its powerful feature set, low weight of 3.5 kg (with battery) and its battery life of over 3.5 h, the R&S PR200 is one of the most sophisticated and easy-to-operate instruments for on-site spectrum monitoring and interference hunting.
Features:
- Detect, analyze and locate RF signals from 8 kHz to 8 GHz; extendable up to 20 GHz with the R&S HE400DC handheld directional antenna and from 18 GHz to 33 GHz with the R&S HE800-DC30 handheld directional antenna both with an integrated downconverter
- Extensive preselection filtering and automatic overload protection
- High-speed panorama scanning with up to 60 GHz/s over the entire frequency range
- Simultaneous measurements in the frequency and time domain with time-gated spectrum calculation
- Accurate AoA based direction finding from 20 MHz to 6 GHz with compact Rohde&Schwarz DF antennas
- Optimized for demanding field operation with minimal size, weight and power consumption
- Innovative application based user interface for convenient, simple and intuitive operation
Specifications:
| Frequency range | 8 kHz to 8 GHz |
| Preselection | 8 kHz to 8 GHz - lowpass, tracking and bandpass filters, combinable |
| Real-time bandwidth | 40 MHz |
| Attenuation | manual or automatic, switchable up to 40 dB, in steps of 1 dB, depending on receiver mode |
| Tuning resolution | 1 Hz |
| Frequency accuracy | GPS aided, averaged over 24 h ±2 × 10–12, ±1 × 10–12 (typ.) |
| Displayed average noise level (DANL) | typ. –160 dBm (1 Hz) |
| Third-order intercept (TOI) (at receiver input) | 35 MHz < f ≤ 3.3 GHz, low distortion mode ≥ 5 dBm 3.3 GHz < f ≤ 8 GHz, low distortion mode ≥ –3 dBm |
| Second-order intercept (SOI) | 35 MHz to 8 GHz > 30 dBm (typ.) |
| Noise figure | 35 MHz < f ≤ 3.3 GHz, low noise mode ≤ 10 dB 3.3 GHz < f ≤ 5.3 GHz, low noise mode < 12 dB 5.3 GHz < f ≤ 7.5 GHz, low noise mode ≤ 17 dB |
| LO phase noise | 35 MHz to 8 GHz ≤ –85 dBc (1 Hz) at 10 kHz offset |
| Minimum detectable pulse duration, 100% POI | 40 MHz span, 1 MHz RBW, 50% FFT overlap 1.5 µs (nom.) |
| GNSS receiver | modes: off, internal, external built-in |
| Dimensions | approx. 192 mm × 320 mm × 62 mm (7.56 in × 12.60 in × 2.44 in |
| Weight | approx. 3.5 kg (7.72 lb) |
| Battery (lithium-ion, 6 cells) | approx. 3.5 h Runtime |
