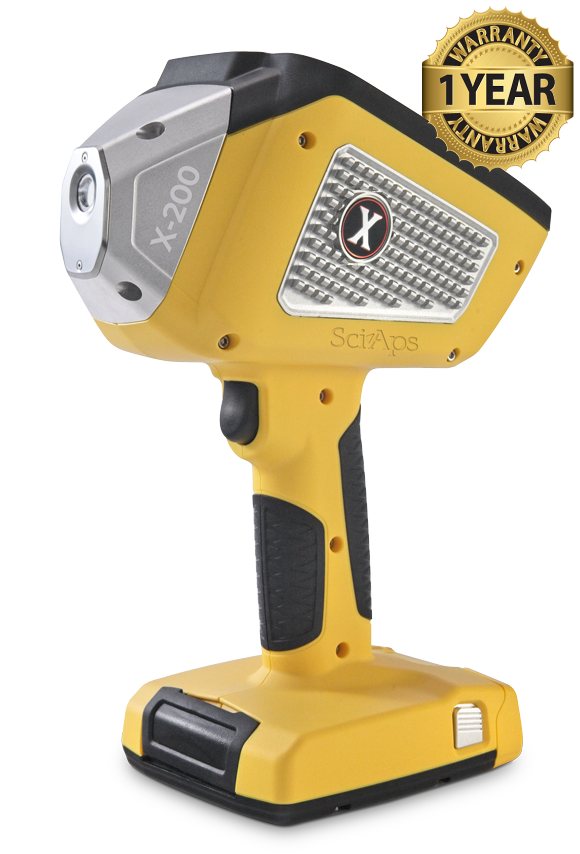

SciAps Scrapper X-200 Mining & Soils Handheld XRF Analyzer

SciAps Scrapper X-200 Mining & Soils Handheld XRF Analyzer

The X-200 offers speed and performance comparable or superior to the top end analyzers from other brands. It uses a top-performing SDD combined with highly optimized X-ray tube and detector geometry. The X-200 is rapidly becoming the first choice for scrap processing and non-destructive testing due to speed and analytical performance combined with the lightweight, small form-factor design. It’s fast on every alloy family including aluminum alloys. For mining applications, it offers suites of elements for environmental, pathfinder, exploration, and mining. Other available apps include environmental soil, RoHS, Precious Metals, Car Catalysts, Coatings, and SciAps Empirical App for users who want to test other types of materials and generate their own calibration models. Analyzers may be factory calibrated with fundamental parameters, Compton Normalization (EPA Method 6200), or user defined empirical calibrations.

SciAps X-200 analyzes common alloys in 1-2 seconds or less. Alloys requiring longer test times or two-beam light-element analysis are readily measured by industry specific apps. Tap the Alloy App for ultra-fast verification of any metal. Even aluminum grades that confound other X-ray guns — 3003/3004/3005, cast 356 and 357, and 2014/2024 — are easy for the X-200. The analyzer uses pre-set testing times to measure low concentrations of Cr, Ni, and Cu, then calculates its sum. Operators won’t be adjusting test times in the field or generating unexceptional data due to insufficient testing times.

Built on Google’s Android platform, SciAps X Series has the feel of a smartphone, with results easily viewed on a vibrant display and on-board macro camera for photo- documentation or 2D/3D bar code reading and storage. With built-in Wi-Fi, Bluetooth, and USB connectivity, you can easily print, email, or transfer results to virtually any information management system. The analyzer is also GPS capable and compatible with SciAps Profile Builder PC software, ensuring fast and efficient test data handling and reporting.

For users who need to also measure carbon in steels, stainless and cast iron, SciAps manufacturers the world’s only handheld laser system (LIBS) capable of measuring carbon content low enough to separate L and H grade stainless. The Z also analyzes beryllium, boron and lithium in alloys. Packaged together with shared accessories in the One Box, the X and Z provide optimal performance for virtually every alloy and element, and for less money than a comparable spark OES system.

Specifications:
