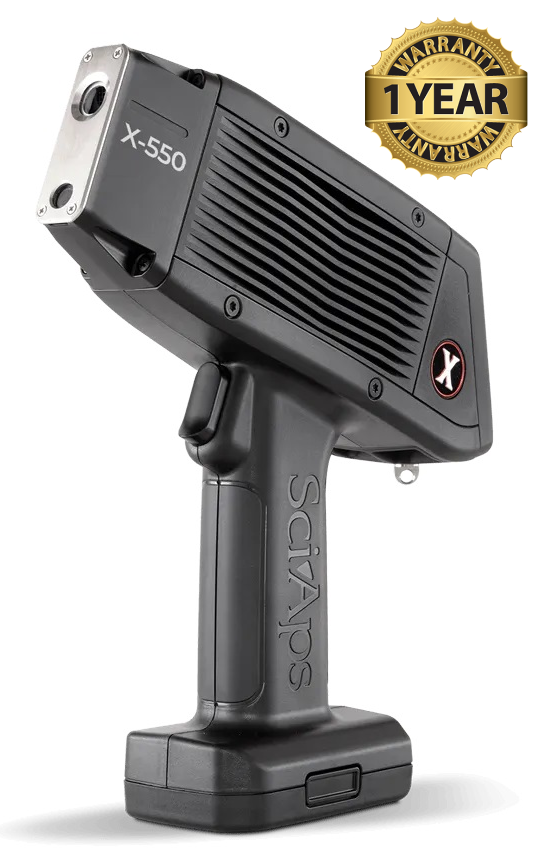

SciAps X-550 Pb Lead Paint & Alloys Handheld XRF Analyzer

SciAps X-550 Pb Lead Paint & Alloys Handheld XRF Analyzer

The SciAps X-550 sets a new performance standard for handheld XRF. Weighing 2.98 lbs. (1.35 kg) with the battery, it’s the lightest, fastest, most articulate XRF analyzer ever made. It delivers the small size, blazing speed and high precision of the SciAps X Series in a perfectly balanced device. It’s fast on all alloys, including aluminums. The X-550 uses the industry’s most powerful X-ray tube for NDT and recycled materials analysis, operating up to 3x the power in the Beam 2 setting compared to the SciAps X-505 and other handheld XRF analyzers. The unique geometry and tube power optimize performance for low atomic number measurement applications including sulfidic corrosion (low Si), phosphorus and sulfur, and aluminum alloys, as well as for residuals analysis per API 751 and 5L specifications.

Fast, precise tests with Sciaps X-550

SciAps X-550 analyzes common alloys in 1 second or less. For alloys requiring longer test times or two-beam analysis, pre-configured on-board apps assure quality testing by every operator. Tap the Residuals App, for example, and the analyzer uses pre-set testing times to measure low concentrations of Cr, Cu and Ni, then calculates the sum. Operators won’t be adjusting test times in the field, or generating insufficient data quality due to incorrect testing times. Our Aluminum App is optimized for both low atomic number elements and transition metals for ultra-fast, highly specific verification of the many similar aluminum grades. Grades 3003/3004/3005, Cast 356 and 357, and 2014/2024 are just a few examples that are easy for the SciAps XRF analyzers but often confound other XRF guns.

Connectivity and Android

The X Series is built on Google’s Android platform for real- time data exporting. The user interface has the feel of a smartphone with results easily viewed on a vibrant display and reversible light/dark for all lighting conditions. Built- in Wifi, Bluetooth, GPS and USB mean that users can print and email from the X and connect to virtually any information management system for efficient test data and reporting. For users who need to also measure carbon in steels, stainless and cast iron, SciAps manufacturers the Z — the world’s only handheld laser system (LIBS) capable of measuring carbon content low enough to separate L and H grade stainless. SciAps Z has achieved global acceptance with nearly 1,000 units delivered. The Z also analyzes beryllium, boron and lithium in alloys. Packaged together with shared accessories in the One Box, the X and Z provide optimal performance for virtually every alloy and element, and for less money than a comparable spark OES system. Need Carbon? Add LIBS

Specifications:
