Sensors & Software Noggin 250 Ground Penetrating Radar GPR

Sensors & Software Noggin 250 Ground Penetrating Radar

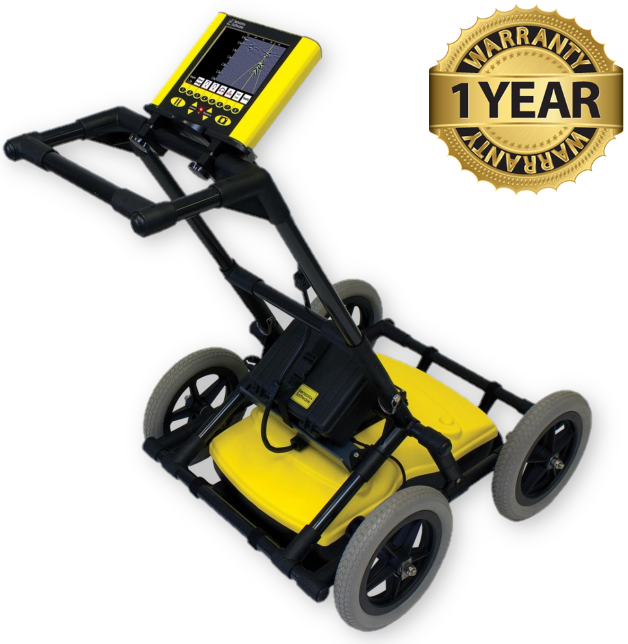

The Sensors & Software Noggin 250 is a high-performance, ultra wideband (UWB) ground penetrating radar (GPR) system operating at a 250 MHz center frequency. It provides an ideal balance of depth penetration and resolution for utility locating, geotechnical, environmental, and infrastructure surveys.

Noggins are available in four center frequencies, ranging from 100 MHz for deep penetration to 1000 MHz for shallow, high resolution surveys. Easily switch your Noggin between a cart, hand-tow, trailer or handle configuration to collect data in any terrain. Noggin’s patented ultra-wide band (UWB), ground-coupled antennas provide maximum signal penetration and the highest GPR data quality. Noggins provide optimal flexibility and performance for your diverse needs.

Ground Penetrating Radar images objects and structures (both metallic and non-metallic) embedded in soil, rock, concrete, asphalt, and fresh water – any non-metallic material. Noggin GPRs are recognized by leading researchers as providing the highest quality data of all GPR systems available today. Rugged by design, Noggin GPR systems have been used successfully in the most demanding conditions around the world – from the Arctic to the Sahara desert.

Applications:

• SUM/SUE
• Underground storage tanks (UST)
• Drainage Systems

Features:

• High Visibility touch screen display unit
• On-site Reports
• USB
• Integrated GNSS
• Optional External GNSS
• Wi-Fi
• Color Field Interpretations
• In-Field Depth Slicing
• DynaQ Dynamic Stacking

Specifications:
