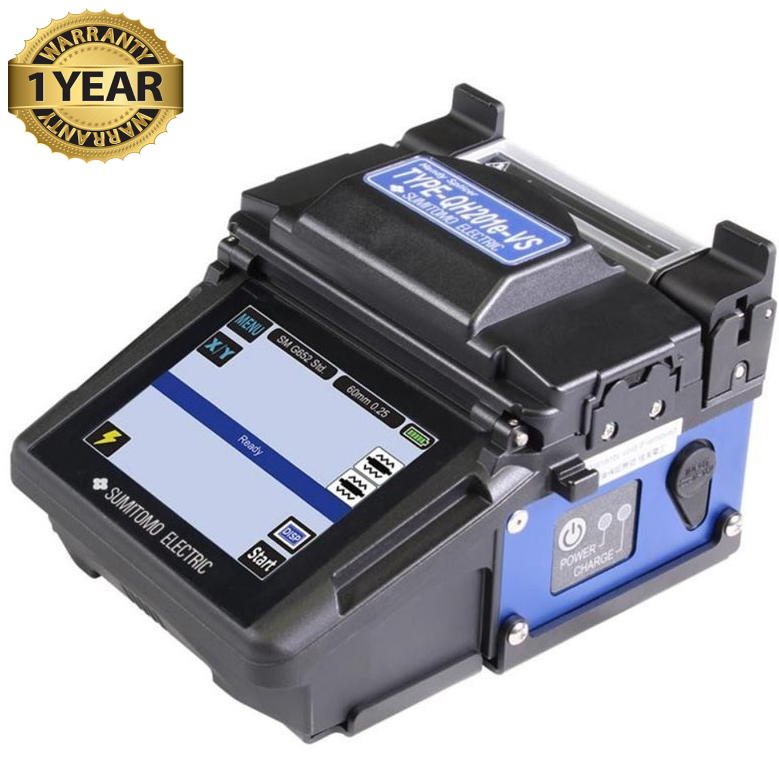

Sumitomo QH201e-VS Handheld Fusion Splicer
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Sumitomo QH201e-VS Handheld Fusion Splicer
- Sumitomo FC-8R High Precision Fiber Cleaver
- Fiber Stripper
- AC Adapter/Charger
- Power Cord
- Hard Carrying Case w/ Strap
Sumitomo QH201e-VS Handheld Fusion Splicer
The Sumitomo Type-QH201e-VS is a compact, handheld fixed V-groove fusion splicer widely used for FTTH (Fiber to the Home) and splice-on connectors. When compared to other splicers—such as core-alignment models or entry-level cladded options—it shines in speed, portability, and ease of use in the field.
Alignment Method:
Uses a Fixed V-Groove. While cladding-aligned or core-aligned models offer higher precision for long-haul networks, fixed V-groove is highly reliable and significantly more cost-effective for standard last-mile drop cables.
Speed:
Delivers a rapid 12-second splice time and 30-second heater cycle, making it one of the fastest handheld units on the market.
Portability:
Boasts an incredibly small, lightweight footprint designed to survive harsh environments with superior shock, dust, and water resistance.
Interface:
Features a modern touchscreen designed for remote maintenance, easy software updates, and an intuitive fiber-holder system.
| Specifications | |
| Optical fiber requirements | |
| Material | Silica glass |
| Profile types | Single / SMF (G.652), MMF (G.651), DSF (G.653), NZDSF(G.655), BIF(G.657) |
| Fiber diameter | 250µm,500µm,900µm, |
| Cleave length | 5 to 10mm |
| Standard Performance | |
| Splice loss (typical) | SMF : 0.05dB, MMF 0.03dB, DSF : 0.08dB, NZDSF : 0.08dB |
| Splice time (typical) | 11sec |
| Heating time (typical) | 30sec |
| Splice & Heat cycles per battery full charge | Approx. 100 |
| Fiber view & Magnification | 2 CMOS cameras observation, 72X (zoom 216X) |
| Proof test | 1.96 ~2.09n |
| Programs | |
| Splice programs | Max. 200 |
| Heating programs | Max. 100 |
| Functions | |
| Splice image capture / splice data storage | 64 images / 10,000 splice data |
| Automatic arc calibration | Automatically compensates for environmental condition changes |
| Size / Weight | |
| Size | 110(W) x 140(D) x 89(H)mm |
| Weight | 700g (without battery) / 850g (with battery BU-12S) |
| Monitor | 3.5 inch color monitor with touchscreen |
| Power supply | |
| AC input | AC 100 ~ 240V, 50/60Hz |
| DC input | DC10 ~15V 4.5A |
| Battery pack | Li-ion 11.1V, 3,060mAh (BU-12L) |
| Electrode life | 6000 arc discharges |
| Software updates | Internet |
| Data management | Can be stored, edited and analyzed by dedicated PC software |
