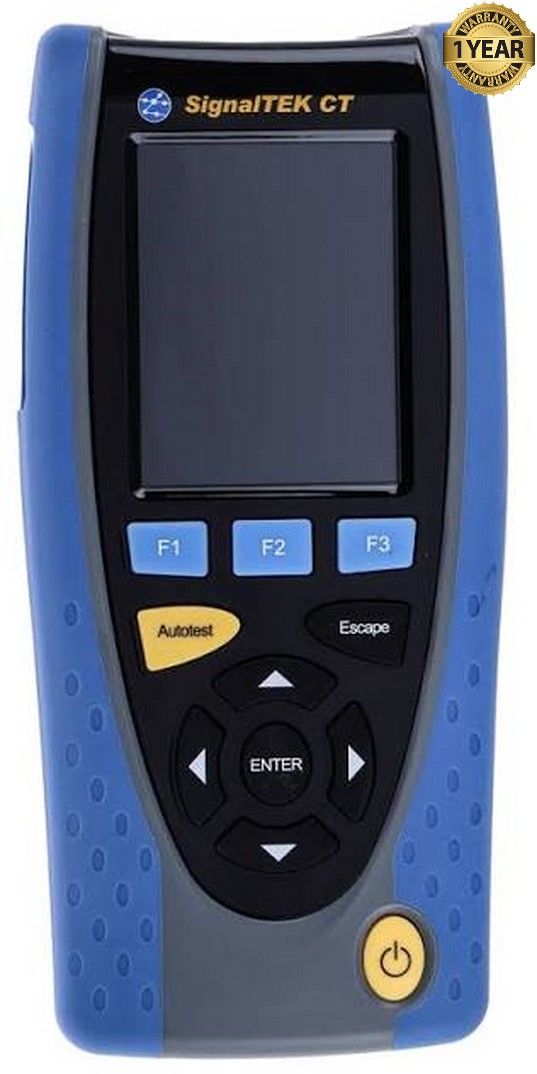

Trend Networks CT Copper Data Cable Transmission Tester

Trend Networks CT Copper Data Cable Transmission Tester

If you install or maintain data cabling, SignalTEK CT allows you to generate PDF test reports that prove installed links run at Gigabit Ethernet transmission rates. For installers, this means having a cost-effective way to demonstrate the cabling is installed correctly and supports any Ethernet application running at up to 1 Gb/s. By proving real world performance, SignalTEK CT documents the quality of an installation - reducing the risk of call backs.

SignalTEK CT proves a link’s ability to provide error-free performance at full Gigabit speeds by performing a complete physical termination and data transmission test. With a quick Autotest, SignalTEK CT transmits a full 10 Gb of data bi-directionally across the link and reports any transmission errors against performance criteria defined by the IEEE 802.3ab Gigabit Ethernet Standard. Just 1 bit of corrupt or lost data among the 10 billion bits transmitted will fail the performance standard.

Key Features:

• Fast Autotest provides proof of network performance in seconds

• Support for shielded and unshielded twisted pair cable including Cat 5e, Cat 6, Cat 6A and Cat 7 (TIA 568A and 568B wiring schemes)

• Stores up to 5000 tests to accommodate even the largest jobs

• Ability to identify and trace cables with a compatible amplifier probe (R180001)

• Use a list of wiremap templates for common Ethernet cable types including CAT 6A/7A/8, and non-Ethernet cable, such as Profinet and ISDN.

• User-friendly menu structure for trouble-free operation and minimal training

• Simple cable naming and job creation enhances on-site productivity



Specifications:
