On Sale! Trilithic Model Two Lite Signal Meter Model Model-Two Lite Trilithic Two Lite

Features:

5â??870 MHz Standard Frequency Coverage
Large, High Resolution Display
Long Battery Life
Rugged & Simple To Use
Cost Effective

Built on the strengths of Trilithic's popular Model Two Signal Level Meter the new Model Two Lite has been fine-tuned to the needs of the installer and small system operator. Performing the basic signal level, return ingress and system flatness tests needed for insuring signal integrity, the Model Two Lite is the ideal basic service instrument for maintaining small community distribution systems, and systems serving resorts, hotels and other large facilities.

The Model Two Lite shares the Model Two's long battery life, operating up to six hours on a single charge and recharging in less than three hours, even from vehicle power.

Like the Model Two, the Model Two Lite is built for heavy use. Housed in a sturdy plastic enclosure, every Model Two Lite includes a padded sleeve, shipped at no additional cost.

To protect the meter when it is not in use, every Model Two Lite includes a foam rubber-padded leather zipper case that holds the meter and all its accessories.

With all these advantages, plus exceptional accuracy, tight temperature stability, wide measurement range and an unmatched price, the Model Two Lite is the best, most cost-effective installation meter you can buy today.

Signal Level Measurement
The Model Two Lite offers several ways to view signal levels. You can tune to a particular frequency or channel number and display Aural and Visual carrier strength , or the power of a digital channel. For a quick view of drop performance you can display the amplitudes of up to 12 selected channels in a single view, with the calculated value of system Tilt. Concerned with amplifier imbalance or cable damage? Track down the problem quickly by scanning and graphing the levels of all channels from 5 Mhz to 870 MHz.

Return Spectrum Mode
Most ingress enters the plant through the subscriber connection. Using Spectrum Mode you can scan and measure any ingress present at the sub's ground block, all the way to -40 dBmV, before connecting the sub to your system. The Model Two Lite's 5 - 65 MHz spectrum analyzer also helps you track down ingress problems that can disrupt Internet, PPV and other two-way services.

Volt Meter Function
Working with powered drops? Troubleshooting distribution power supplies? The Model Two Lite includes a digital voltmeter calibrated for AC or DC measurements up to 105 volts.

Plan for the Future
The Model Two Lite can grow with your needs. At any time, you can bring your Model Two Lite up to full Model Two capability, adding C/N measurements, data logging, full-range spectrum analysis and a range of other useful functions.

Specifications

Frequency:
Range: 5MHzâ??870MHz
Accuracy: +/- 50ppm (20°C +/- 5 °C)
Resolution: 10kHz

Channel Type:
Analog TV: TV
Digital TV: QAM, QPSK
FM channel: Single Frequency
Dual Audio Channels

Level Measurement:

Range:	-30dBmV to 60 dBmV
	(30dBµVâ??120dBµV)
Accuracy:	(> 35dBmV or â??25dBmV)
	+/-1.5dB (10°C to 30°C)
	+/-3dB (-10°C to 40°C)

SCAN	+/-2dB (10°C to 30°C)
Resolution:	0.1dB
Input Impedance:	75W (unbalanced, BNC or F type connector)

Channel Scan:
Number of Channels: 150 channels max.
Scanning speed: 2.75 channels / sec
Scale: 1,2,5,10 dB/div
Zoom: 1X, 2X, 3X, 4X, 5X five levels of magnification or full Channel Plan scan.

Frequency spectrum:
Bandwidth: 2.5MHz, 6.25MHz, 12.5MHz,
25MHz, 62.5MHz
Scale: 1,2,5,10 dB/div

Digital Channel (Average) Power:
Bandwidth: 0.28~9.99MHz
Center Frequency: 5MHz (plus ½ Channel bandwidth) to 870MHz (minus ½ Channel bandwidth)
Digital modulation: QAM, QPSK

Tilt measurement:
Number of channels: 4â??12
Resolution: 0.1dB

Trunk Voltage measurement:
Input range: 1.2â??100VAC, 1.0â??100VDC
Accuracy: +/- 1V
Resolution 0.1V

Others:
Communication Port: RS 232C
Audio Output: Built-in speaker
Dimensions: 218mm X 95mm X 49mm
(excluding belt clip and RF connector)
Weight: 1.45 lbs. (658gm)
Display: 128 X 128 LCD with backlight

Power Supply:
Battery: 3.6V 3.5AH Ni-MH battery, Charger:
* AC 100-240V, 50/60Hz, 1.8A 7VDC(max)
Work Time: Average 6-8 hours (full charged battery). Charge Time: Less than 3 hrs.

For full Trilithic Model Two Lite product specifications, please click here: Trilithic Model Two Lite

Additional Information

Trilithic Model Two Lite Signal Level CATV Meter

5-870 MHz Frequency Range

Performs the basic signal level, return ingress and system flatness tests needed for insuring signal integrity.

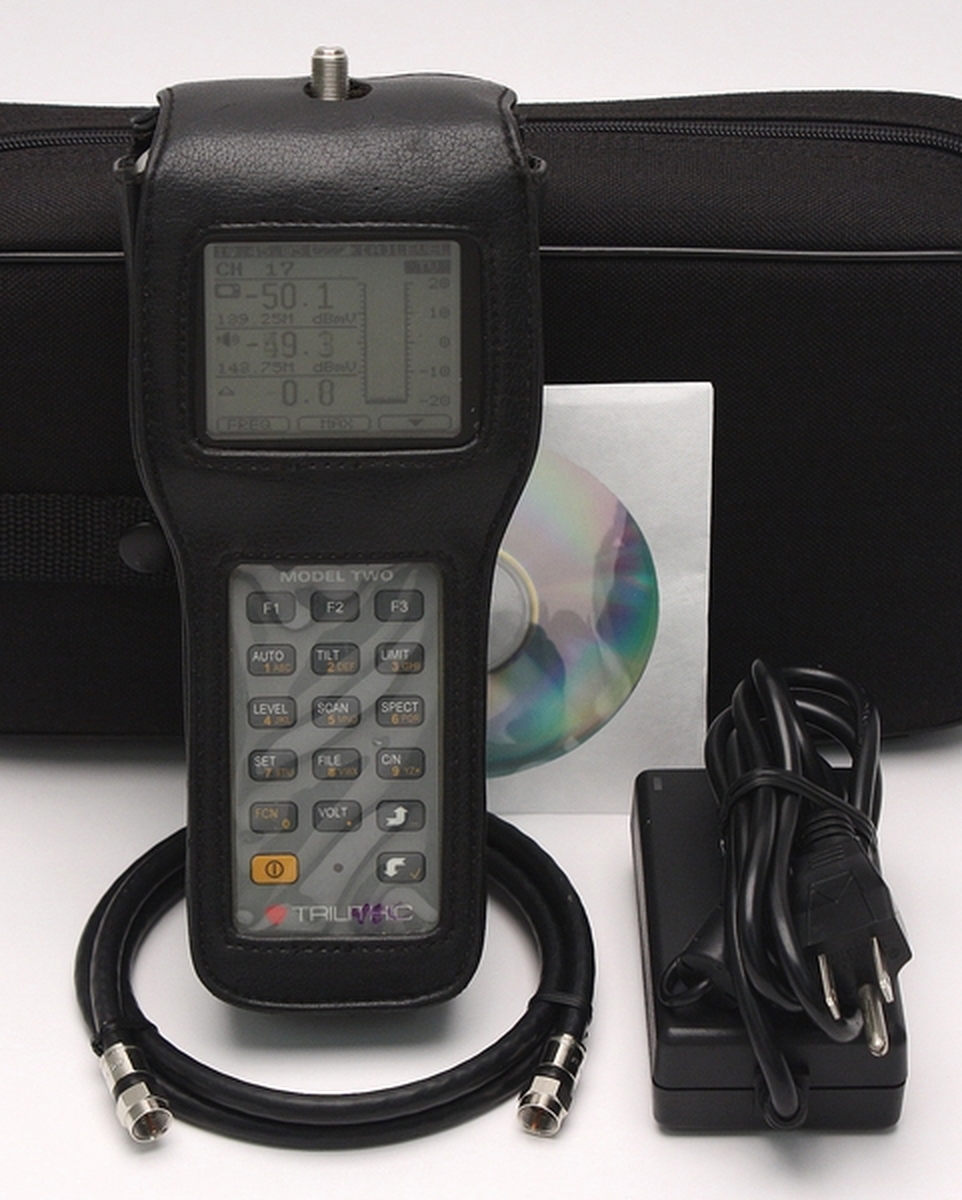

Includes Carrying Case & Accessories As Listed!

Model2 2

Trilithic Model Two Lite Model-Two Lite Signal Meter Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.

BC# 28758

Included
