UE Systems Ultraprobe 15000 MPH Ultrasonic Leak Detection System UP15000
$12,449.00
Availability:
Out of stock
SKU
UE11
Condition: Refurbished/Calibrated
Warranty: 1 Year Warranty
Request a Quote for
UE Systems Ultraprobe 15,000 MPH Ultrasonic Leak Detector
On Board Analysis of Mechanical/Electrical Inspection.
A true “full-service inspection system”, you will be amazed at how many different ways you can use it, as well as how many different applications it can be used for. Touch an icon and the world of ultrasonic inspection opens for you.

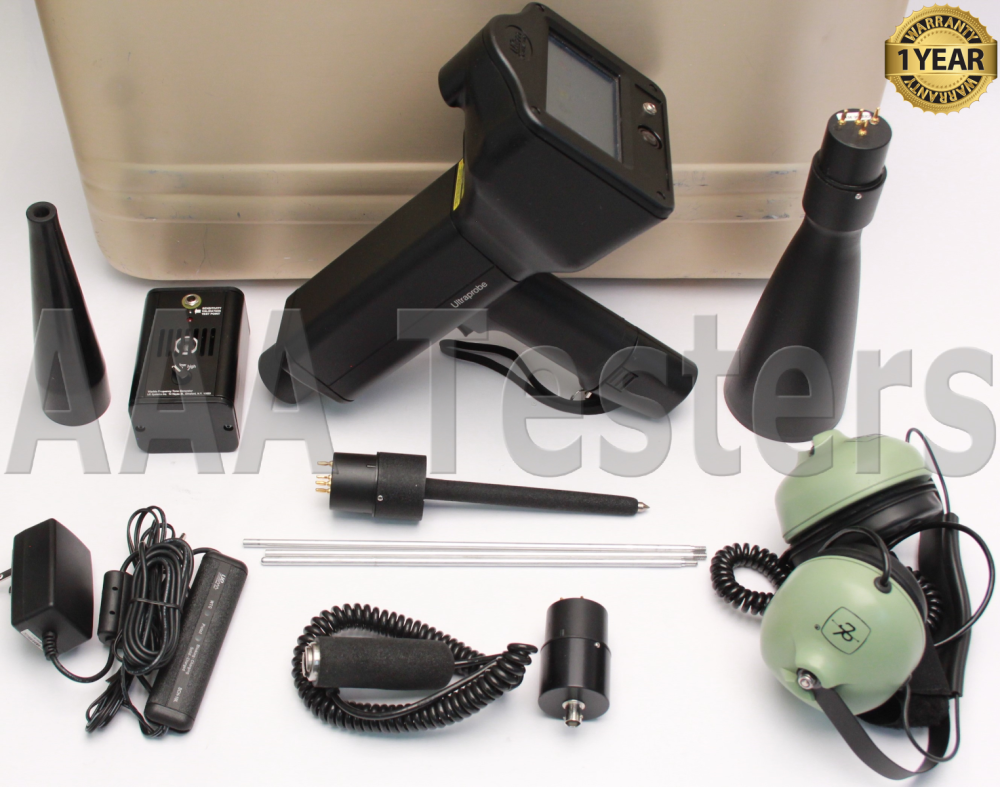

Includes Hard Carrying Case & Accessories As Listed!
- UE Systems UltraProbe 15,000 MPH Ultrasonic Leak Detection System (BC#-L/T*)
- UE WTG-1 Tone Generator (BC#-L/T*)
- UE Headphones
- UE LRM9:L 102514 Long Range Module
- UE Magnetic Transducer & Cable
- Rubber Focusing Probe
- (2) Extension Rods
- UE Stethoscope Module w/ Screw-In Rod
- AC Adapter/Charger
- User Manual On CD-ROM
- Hard Carrying Case
Specifications:
| Construction: |
Hand-held pistol type made with coated aluminum and ABS plastic |
| Circuitry: |
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion |
| Frequency Range: |
20 kHz to 100 kHz (tunable in 1 kHz increments) |
| Response Time: |
< 10 ms |
| Display: |
QVGA Touch Screen - IR, Laser Pointer, Camera, Spectrum Analyzer |
| Sound Recording |
WAV File Format |
| Memory: |
400 storage locations |
| Battery: |
Lithium ION Rechargeable |
| Operating Temperature: |
0 °C to 50 °C (32 °F to 122 °F) |
| Outputs: |
Calibrated hetrodyned output, decibel (dB) frequency, SD Card |
| Probes: |
Trisonic Scanning Module and Stethoscope Module, Long Range Module (Laser Sighting) and RAS-MT |
| Headset: |
Deluxe noise attenuating headphones - for hard hat use |
| Indicators: |
dB, Frequency, Battery Status and 16 Segment Bar Graph |
| Sensitivity: |
Detects .127 mm (.005”) diameter leak @ .34 bar (5 psi) at a distance of 15.24 m (50 ft.) |
| Dimensions: | Complete kit in Zero Halliburton aluminum carrying case 21.5" x 18.5" x 8" (55 x 47 x 20 cm) |
| Weight: |
Pistol Unit: 2.35 lbs. (1.1 kg) Complete Carrying case: 19 lbs. (8.6 kg) |
| Display Modes: |
dB (main), IR, ABCD, Spectrum and Application Specific, Spectrum Analyzer (modes): Spectrum, Time Series & Dual Specific |
