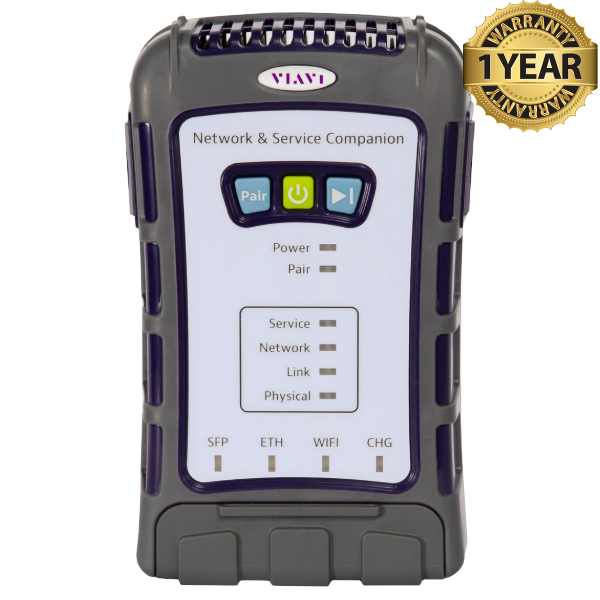

Viavi NCS-100 Network & Service Companion
$899.00
Availability:
In stock
SKU
1B49
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Viavi NCS-100 GPON Network & Service Companion (BC# -L/T*)
- USB Cable
- AC Adapter/Charger
- Carrying Case (G)
Request a Quote for
Viavi NCS-100 Network & Service Companion
The NSC-100 is a test solution for Ethernet, Enterprise and Data Center Networks. It combines active Ethernet and WiFi testing capabilities enabling service activation and troubleshooting tests on all network layers.
- Simplify the Ethernet turn-up and troubleshooting process by enabling Ethernet tests on network Layers 2, 3, and 4.
- Identify and prevent customer affecting throughput issues by running active throughput tests (Speedtest, TrueSpeed RFC6349, iPerf).
- Validate business services as standalone unit, or as remote loopback device when combined with the T-BERD/MTS-5800 for Y.1564 and RFC2544 tests.
- Optimize WiFi coverage and performance; get network improvement recommendations when performance is below expectation.
- Perform 24/7 monitoring sessions for long-term, root cause failure analysis and SLA monitoring.
Features
- Ethernet test interfaces up to 10G
- Ethernet testing up to Layer 4 (TCP/UDP)
- WiFi 3x3 tests and WiFi Expert up to WiFi 6
- StrataSync and Mobile Tech app support
- Job Manager
Specifications:
| ONU/ONT | VIAVI GPON SFP |
| Interface | SC/APC |
| Standard | G.984.2 GPON compliant G.988 OMCI compliant |
| Upstream (1310 nm) Tx Signal Power Range | 0.5 dBm to 5.0 dBm |
| Downstream (1490 nm) Rx Signal Power Range | -28.0 dBm to -8.0 dBm |
| Test Results | PON Activation State, Power Level values from the SFP, PON ID, ODN Class – according to ITU-T G.984 and G.988 standards |
| Communication Interface | Bluetooth v5.0 |
| Smart Device Support (recommendation) |
Mobile Tech app Android 8 or newer iOS 12 or newer |
| VIAVI Instrument Support | ONX-580, ONX-CATV |
| Weight | 0.8 kg (1.7 lb) |
| DC Input Power | 15V @ 3A, USB-C Power Delivery (PD) |
| Battery | 32 W/hr Li-Ion rechargeable battery Field replaceable |
| Battery Life | 1-week typical usage for installation technicians |
| Charge Port | USB-C |
